Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1900X1400X2000mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Diameter Range: ¢500- ¢ 2200mm Saw Blade Aperture: ¢ 10-220mm
Grinding Wheel Size (outer Diameter X Hole): (¢ 125mm X ¢32mmX2mm)
High Light:

automatic circular saw blade grinding machine

,

500-2200mm circular saw blade grinding machine

,

500-2200mm 4 inch saw blade for grinder

Product Description

LDX-026 Automatic circular saw blade grinding machine





Automatic saw blade grinding machine alloy saw blade rust factors:

1,In general, carbide saw blades should be coated with anti-rust oil when not in use, placed in a ventilated, dry place, packaging can not be damaged, it is best to store on a wooden shelf.



2,The factors that lead to the rust of the saw blade are usually: the packaging is damaged, the place is wet, and it is easy to contact the cemented carbide saw blade from the damaged entrance to produce water mist, resulting in oxidation.



3,It may also be because in the place where the saw blade is stored, the liquid seeps into the inside of the saw blade packaging, causing oxidation, which leads to rust.



4,Therefore, when we do not use the saw blade, we must pay attention to the location of the placement, and must be kept ventilated and dry.









Technical parameters:
Processing saw blade diameter range: ¢500- ¢ 2200mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX2mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1900X1400X2000mm

Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.

1. Pre set multiple sets of tooth profiles for one click multifunctional operation.

2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.

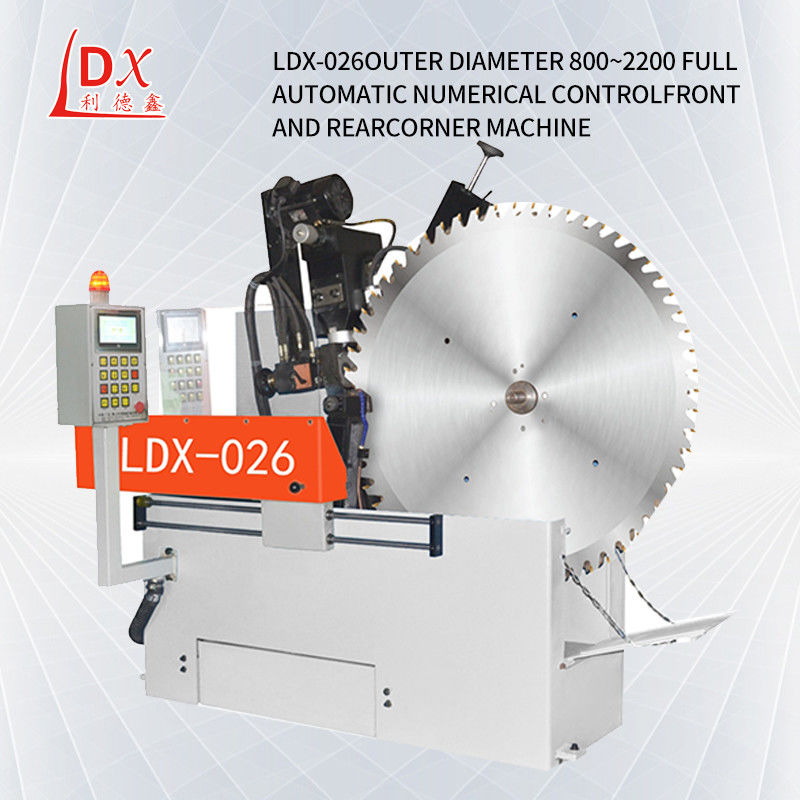

500-2200mm LDX-026 Large Automatic Circular Saw Blade Grinding Machine 0









500-2200mm LDX-026 Large Automatic Circular Saw Blade Grinding Machine 1









500-2200mm LDX-026 Large Automatic Circular Saw Blade Grinding Machine 2
