Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Pitch Range: 7-100mm Tooth Face Angle: 5°~+30°
Tooth Top Dorsal Angle: 6-45°
High Light:

circular saw blade grinding machine ldx-026a

,

7-100mm circular saw blade grinding machine

,

7-100mm 4 inch saw blade for grinder

Product Description

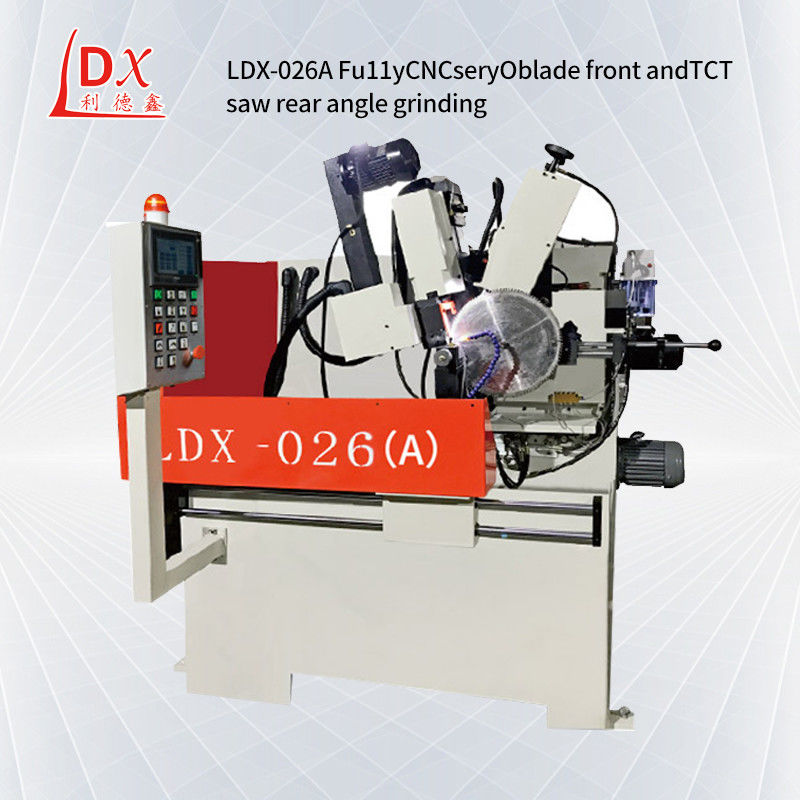

LDX-026A Fully CNC Circular saw blade grinding machine



How to find rust when sharpening the saw blade:

1,First look at the rusty part, if it is the matrix part, the treatment is very good, we can use our common rust prevention methods.



2,If the rusty part is in the sawtooth position, it is some trouble, in this case, it must be treated with diamond grinding wheel, because the sawtooth is the most sensitive place in the saw blade, once handled improperly, it will seriously affect the use of cemented carbide saw blade, saw blade scrap is very likely.



3,In fact, the best way to deal with the rust of the saw blade is actually the usual maintenance, some details of the treatment, only prevention is the most effective way to deal with the problem.







Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.






7-100mm Fully CNC Circular Saw Blade Grinding Machine LDX-026A 0







7-100mm Fully CNC Circular Saw Blade Grinding Machine LDX-026A 1







7-100mm Fully CNC Circular Saw Blade Grinding Machine LDX-026A 2
