Full Enclosed CNC Front And Rear Angle TCT Circular Saw Blade Grinding Machine LDX-026A
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-026A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Appearance(Long*Width*Height):1500X1300X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Range Of External Diameter Of Processing: | ￠100-￠800mm | Inner Bore Of Saw Blade: | ￠10-220mm |
|---|---|---|---|
| Tooth Top Dorsal Angle: | 6-45° | Grinding Wheel Dimensions (outer Diameter * Bore): | (￠125mm*￠32mm*1mm) |
| Highlight: | tct circular saw blade grinding machine,circular saw blade grinding machine ldx-026a,tct 4 inch saw blade for grinder |
||
Product Description

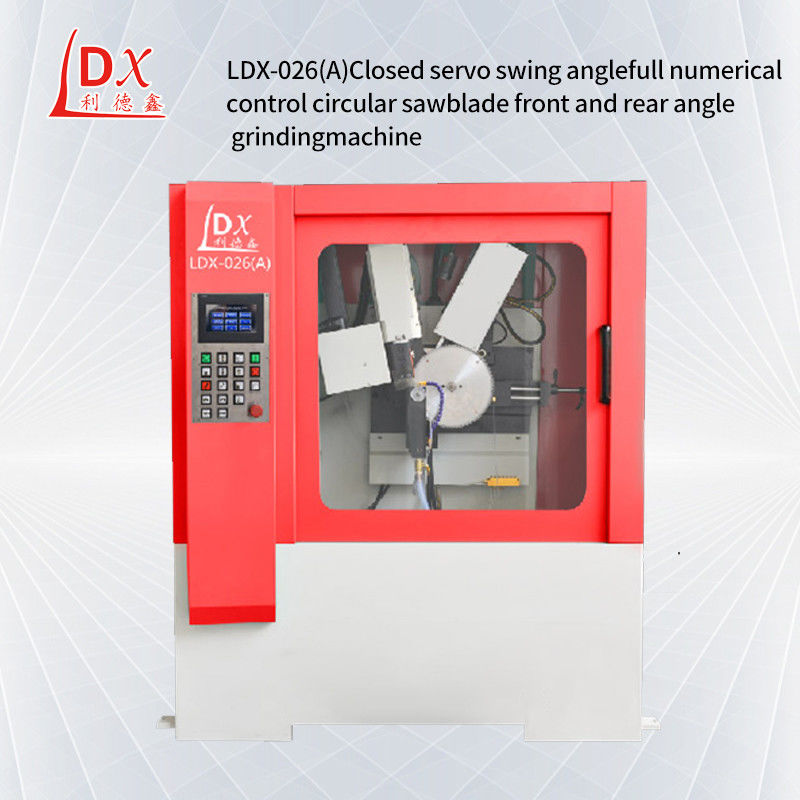

LDX-026A Full Enclosed CNC Front And Rear Angle TCT Circular Saw Blade Grinding Machine
| Main Technical Parameters : |
| Range of external diameter of processing:￠100-￠800mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-8mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mmX1mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180° |
| Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:900KG |
| Appearance(Long*Width*Height):1500X1300X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and |
