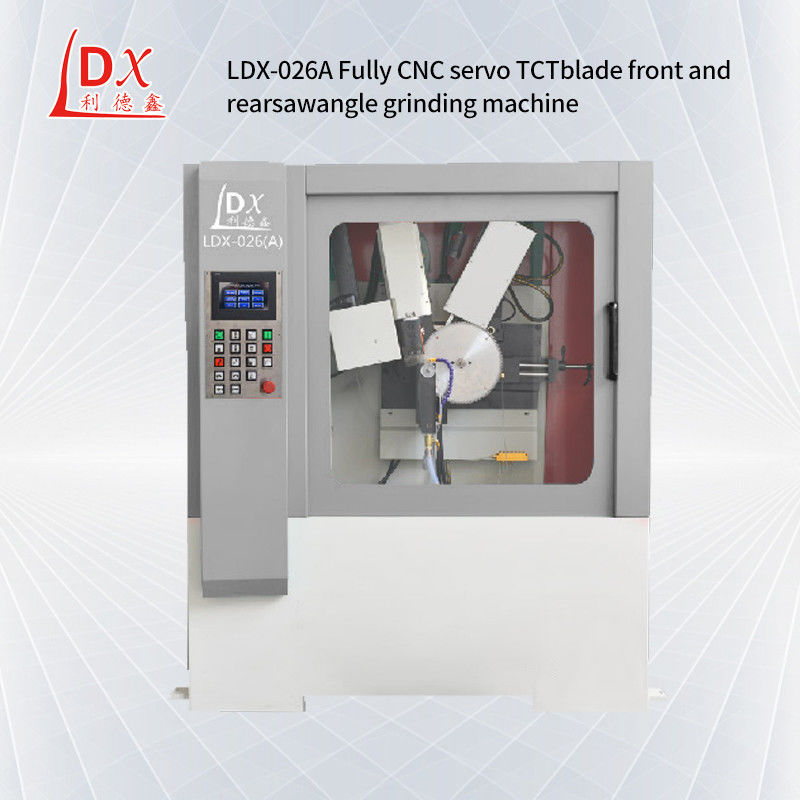

LDX-026A Fully Enclosed Servo CNC Circular Saw Blade Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-026A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Appearance(Long*Width*Height):1500X1300X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Tooth Left/right Gradient: | Tooth Top/tooth Face 45° | Cutter Grinding Stroke Range: | Max. 25mm (adjustable) Teeth/min |
|---|---|---|---|
| Working Speed: | Max. 20 Teeth/min | Appearance(Long*Width*Height): | 1500X1300X1800mm |
| High Light: | ldx-026a circular saw blade grinding machine,ldx-026a 4 inch saw blade for grinder,servo circular saw blade grinding machine |
||
Product Description
LDX-026A Fully enclosed servo CNC circular saw blade grinding machine
Precautions for operating the grinding machine:
1,Grinding wheel, saw blade, tooth adjustment button and push claw lock screws can be slightly hard to lock, too much force will hurt the screws, reduce the life of parts.
2,Dust is also the focus of this machine, rubber parts aging or damage to contact the seller in time to replace.
3,The fuselage telescopic lifting rod can usually be used to receive saw blades, grinding wheels, and indexing plates, but be careful not to bear excessive weight.
| Main Technical Parameters : |
| Range of external diameter of processing:￠100-￠800mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-8mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mmX1mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180° |
| Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:900KG |
| Appearance(Long*Width*Height):1500X1300X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and |
