• Large TCT Saw Blade Circular Saw Blade Grinding Machine LDX-026A
Large TCT Saw Blade Circular Saw Blade Grinding Machine LDX-026A

Large TCT Saw Blade Circular Saw Blade Grinding Machine LDX-026A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100unit
Get Best Price Contact Now

Detail Information

Total Power: 2.2KW Total Weight Of Equipment: 1000KG
Range Of External Diameter Of Processing: ¢300-¢1500mm
High Light:

circular saw blade grinding machine ldx-026a

,

1-12mm circular saw blade grinding machine

,

1-12mm 4 inch saw blade for grinder

Product Description

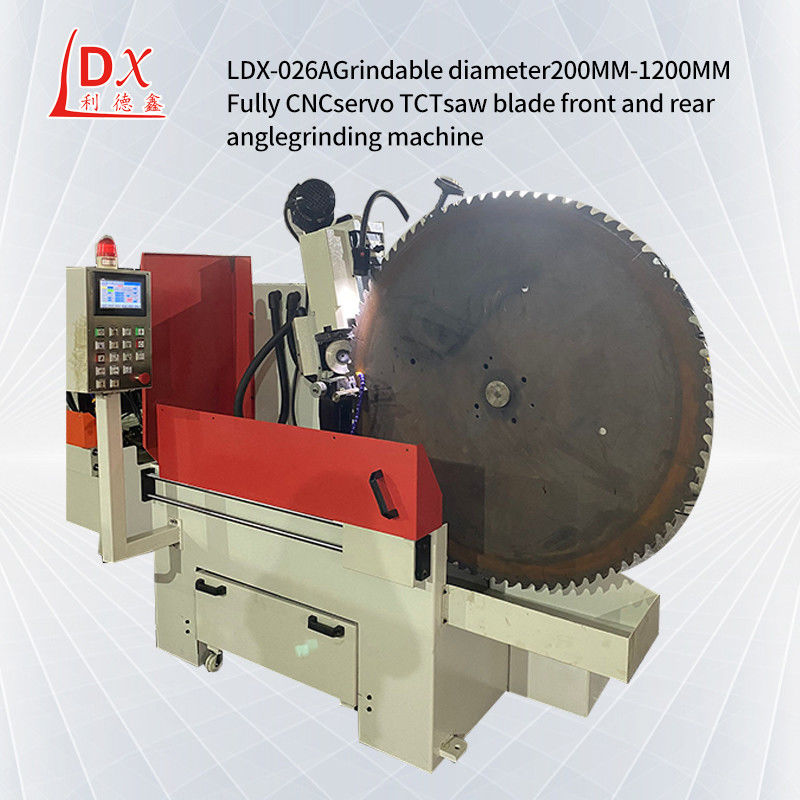

LDX-026A Large TCT Saw Blade Circular Saw Blade Grinding Machine



Saw blade custom thickness selection:

1,The thickness of the saw blade, that is, we often say sawing, too thick will cause material waste



2,Too thin will cause unstable sawing, so be sure to make it clear, if you don't know very well,



3,You can say your requirements to the manufacturer, and the customized manufacturer will judge according to experience.







Main Technical Parameters :
Range of external diameter of processing:¢300-¢1500mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.






Large TCT Saw Blade Circular Saw Blade Grinding Machine LDX-026A 0







Large TCT Saw Blade Circular Saw Blade Grinding Machine LDX-026A 1







Large TCT Saw Blade Circular Saw Blade Grinding Machine LDX-026A 2
