Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1800X1400X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Blade Aperture: ¢ 10-220mm Saw Blade Thickness (steel Plate): 1-12mm
Tooth Pitch: 7-120mm
High Light:

tct circular saw blade grinding machine

,

circular saw blade grinding machine ldx-026a

,

large 4 inch saw blade for grinder

Product Description

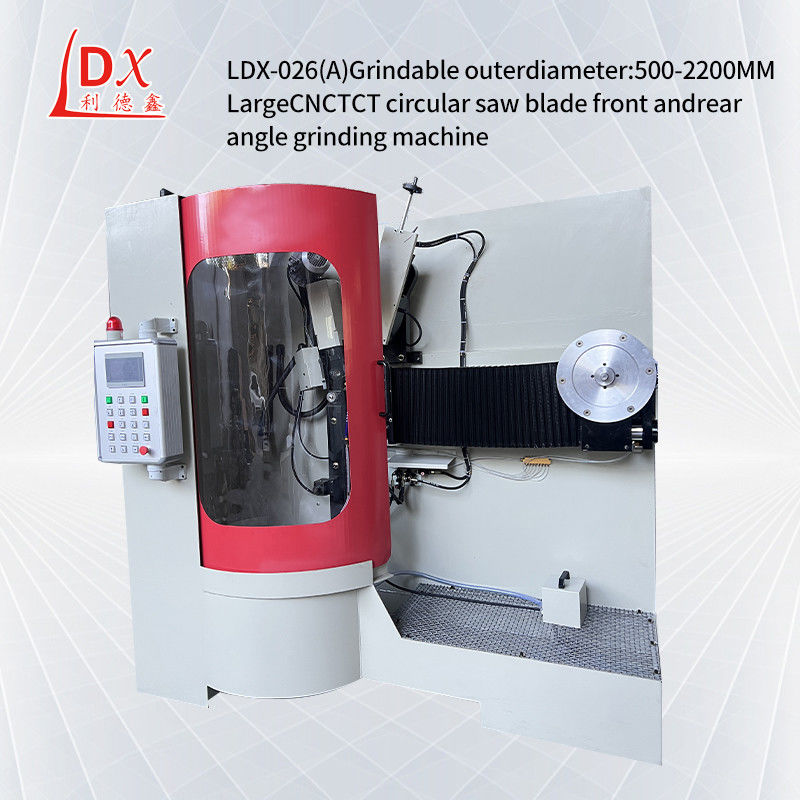

LDX-026A Large CNC TCT circular saw blade grinding machine



TCT circular saw blade grinding machine customized saw blade precautions:



1,Saw blade diameter This is very simple and can be designed according to different sizes of materials. Saws of different sizes of materials must use the saw blade size corresponding to each other.



2,What kind of material should be used when the saw blade is customized, which needs to be judged according to the material to be cut, such as: high-speed steel, cemented carbide or cold saw blades, saw blades also need to be customized according to different materials.



3,The equipment largely determines the use of the saw blade, so when customizing the saw blade, it is necessary to explain what kind of equipment to use, so as to improve the corresponding efficiency when making the saw blade.







Technical parameters:
Processing saw blade diameter range: ¢300- ¢ 1800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1800X1400X1800mm

Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.

1. Pre set multiple sets of tooth profiles for one click multifunctional operation.

2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.










Large CNC TCT Circular Saw Blade Grinding Machine LDX-026A 0







Large CNC TCT Circular Saw Blade Grinding Machine LDX-026A 1







Large CNC TCT Circular Saw Blade Grinding Machine LDX-026A 2







Large CNC TCT Circular Saw Blade Grinding Machine LDX-026A 3
