• LDX-026A Large Servo Feed Circular Saw Blade Grinding Machine
LDX-026A Large Servo Feed Circular Saw Blade Grinding Machine

LDX-026A Large Servo Feed Circular Saw Blade Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1800X1400X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Diameter Range: ¢500- ¢ 2200mm Tooth Pitch: 7-110mm
Tooth Surface Angle: 5 Degrees To+30 Degrees
High Light:

ldx-026a circular saw blade grinding machine

,

ldx-026a 4 inch saw blade for grinder

,

large circular saw blade grinding machine

Product Description

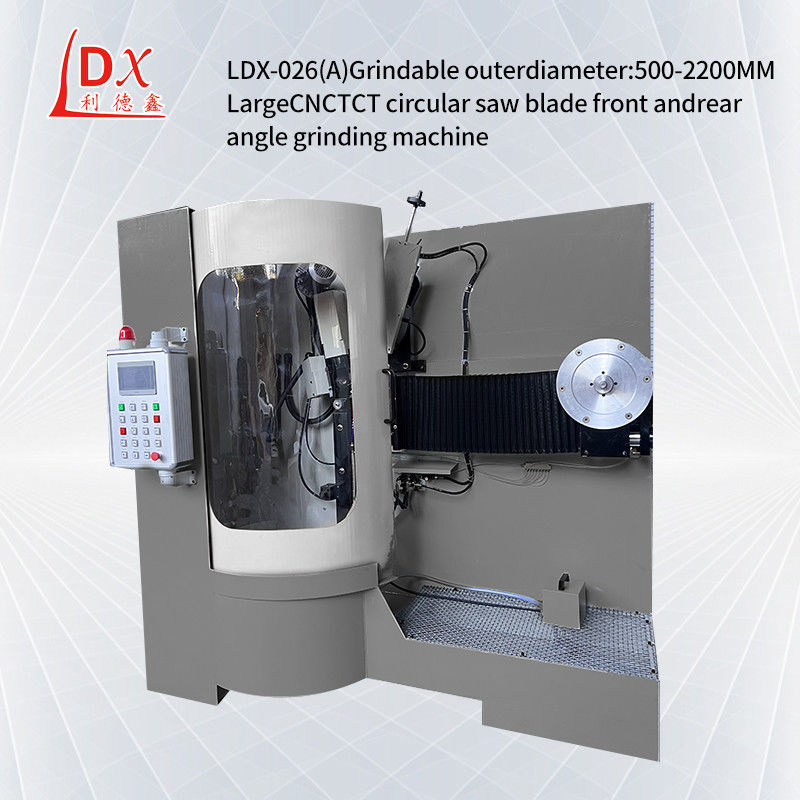

LDX-026A Large servo feed circular saw blade grinding machine





How to clean the grinding machine table:



1,Whether before or after using the grinding machine, we should check the grinding machine table for dirt. If there is dirt on the surface of the grinding machine, it must be removed.



2,Some large aluminum profile processing enterprises, on the issue of standardized operation of the saw blade, will require employees to check whether there is dirt on the surface of the saw blade.





3,When checking the surface of the saw blade, we should focus on whether there is dirt at the aperture, because once there is dirt at the aperture, it will affect the tightness of the flange, and even make the saw blade shake when working.







Technical parameters:
Processing saw blade diameter range: ¢300- ¢ 1800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1800X1400X1800mm

Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.

1. Pre set multiple sets of tooth profiles for one click multifunctional operation.

2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.










LDX-026A Large Servo Feed Circular Saw Blade Grinding Machine 0







LDX-026A Large Servo Feed Circular Saw Blade Grinding Machine 1







LDX-026A Large Servo Feed Circular Saw Blade Grinding Machine 2







LDX-026A Large Servo Feed Circular Saw Blade Grinding Machine 3
