LDX-020A Grinding Diameter 200-1200MM Automatic Circular Saw Blade Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1600X1100X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Diameter Range: ¢200- ¢1200mm Tooth Pitch: 7-110mm
Tooth Surface Angle: 5 Degrees To+20 Degrees
High Light:

automatic circular saw blade grinding machine

,

ldx-020a circular saw blade grinding machine

,

ldx-020a 4 inch saw blade for grinder

Product Description

LDX-020A Grinding diameter 200-1200MM Automatic circular saw blade grinding machine





Precautions and methods of grinding:



1,It is very important to repair the blade in time when the blade wear reaches 0.2mm, because the blade passivated at work, due to the increase of resistance, it is easy to cause the saw blade jashing, increase the load of the motor, and cause damage to the saw blade and the machine.



2,It is very important to timely repair when the blade wear of the saw alloy reaches 0.2mm, because the saw blade with the edge passivation is working.



3,Due to the increase of resistance, it is easy to cause the saw blade jitter, increase the load of the motor, and cause damage to the saw blade and the machine.







Technical parameters:
Processing saw blade diameter range: ¢200- ¢1200mm
Saw blade aperture: ¢10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-110mm
Tooth surface angle: 5 degrees to+20 degrees
Tooth top back angle: 1-20 degrees
Left and right inclination of teeth: tooth tip/tooth surface 20 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢ 32mmX1mm)
Negative chamfer grinding: -15 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 800KG
Mechanical dimensions (length x width x height): 1600X1100X1800mm

Technical features:

1. This equipment can grind aluminum TCT cutting TCT saw blades, woodworking saw blades, and large alloy saw blades. It is easy to operate and can fully extend the service life of alloy saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers.

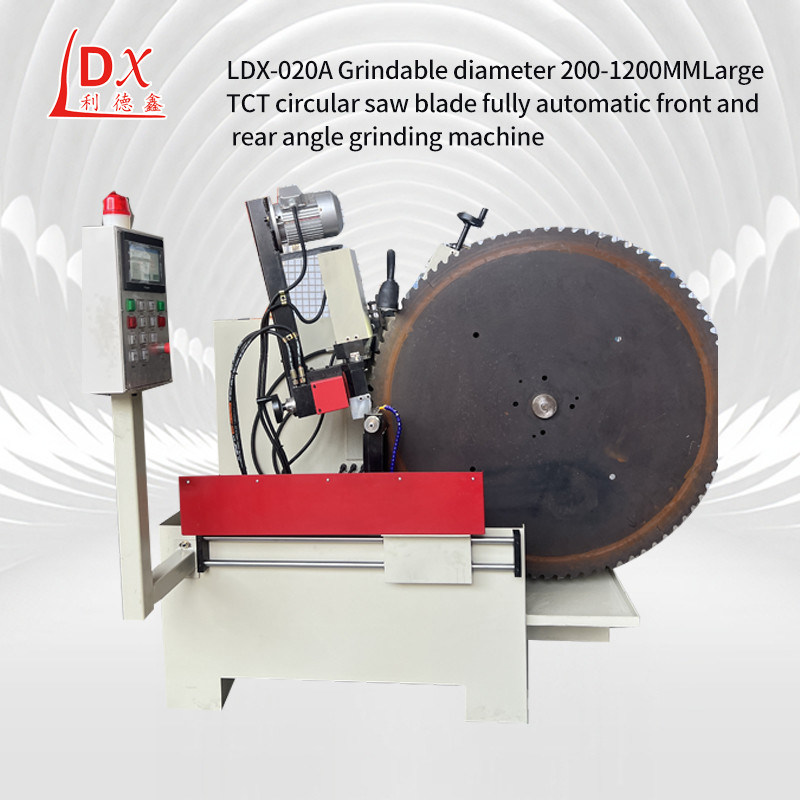

LDX-020A  Grinding Diameter 200-1200MM Automatic Circular Saw Blade Grinding Machine 0







LDX-020A  Grinding Diameter 200-1200MM Automatic Circular Saw Blade Grinding Machine 1







LDX-020A  Grinding Diameter 200-1200MM Automatic Circular Saw Blade Grinding Machine 2







LDX-020A  Grinding Diameter 200-1200MM Automatic Circular Saw Blade Grinding Machine 3







LDX-020A  Grinding Diameter 200-1200MM Automatic Circular Saw Blade Grinding Machine 4
