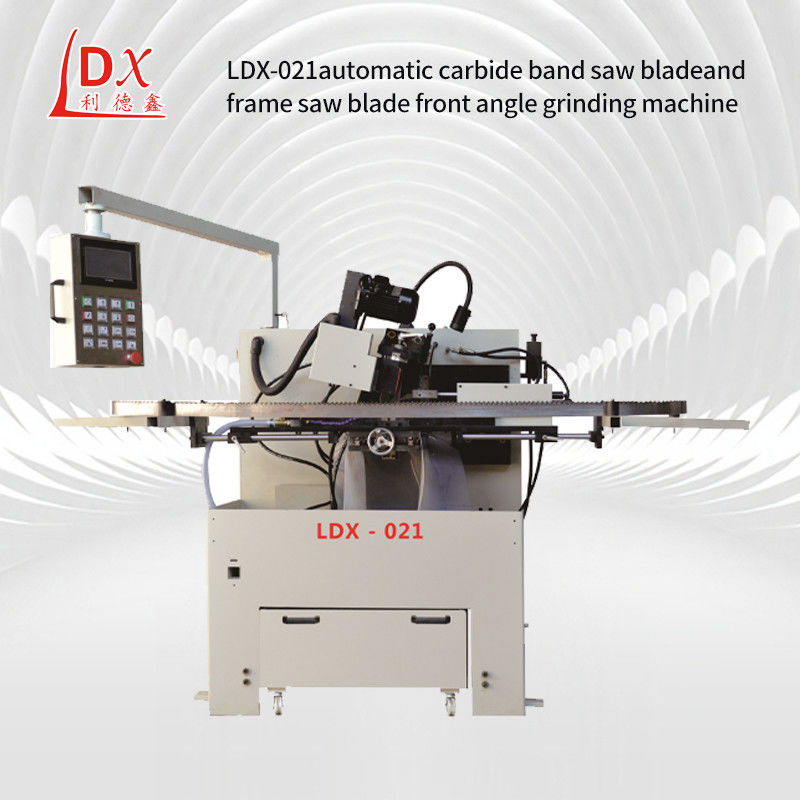

LDX-021 Full CNC Alloy Saw Blade Front Angle Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-021 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical dimensions (L X W X H mm) : 800X800X1380 |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Processing Saw Blade Thickness: | 0.6-3mm | Working Speed: | Maximum 18 Teeth/min |
|---|---|---|---|
| Grinding Wheel Size (outer Diameter X Hole): | ￠125mmX32mm | ||
| High Light: | full cnc circular saw blade grinding machine,full cnc 4 inch saw blade for grinder |
||
Product Description
LDX-021 Full CNC alloy saw blade front Angle grinding machine
The CNC process of gear processing technology of TCT saw blade grinding machine:
1,The CNC process requires CNC control of each moving axis of the machine tool, and may be linked between some axes. This control can increase the function of the machine tool, such as hobbing small taper and drum gear processing becomes easier.
2,Numerical control programming is required before numerical control machining. This is a complex process involving mathematics, machinery, computer and other fields of knowledge, which needs to convert the requirements and machining routes of the gear into program instructions and input into the CNC machining center
3,The CNC process of gear machining technology of TCT saw blade grinding machine is a comprehensive project, which combines traditional machining technology and modern numerical control technology, aiming at improving the machining accuracy, efficiency and reliability of gear.
| Technical parameter: |
| Processing saw blade thickness: 0.6-3mm |
| Saw blade width: 27-100mm |
| Working speed: Maximum 18 teeth/min |
| Grinding wheel size (outer diameter X hole) : ￠125mmX32mm |
| Grinding wheel line speed: 26m/s |
| Coolant pump flow rate: 501 |
| Coolant cylinder volume: 80L |
| Total power: 2KW |
| Voltage: three-phase 380V |
| Mechanical weight: 300KG |
| Mechanical dimensions (L X W X H mm) : 800X800X1380 |
| Grinding object: |
| Alloy band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used. Can grind all kinds of tooth shape, such as 3-4 teeth, 4/6 teeth, variable teeth and equal teeth, etc. The machine is simple and convenient to operate, suitable for large, medium and small machinery factory, wood processing, steel sawing processing plant, alloy band saw blade, bimetal band saw blade, frame saw blade tooth shape grinding indispensable equipment. |
