• LDX-021 Full CNC Saw Blade Grinding Machine
LDX-021 Full CNC Saw Blade Grinding Machine

LDX-021 Full CNC Saw Blade Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-021

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (L X W X H mm) : 800X800X1380
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Thickness: 0.6-3mm Working Speed: Maximum 18 Teeth/min
Grinding Wheel Line Speed: 26m/s Coolant Cylinder Volume: 80L
High Light:

cnc saw blade grinding machine

,

full cnc saw blade grinding machine

,

ldx saw grinding machine

Product Description

LDX-021 Factory direct sales full CNC saw blade grinding machine



How to adjust the saw blade grinding machine:



1,aw blade gear grinding machine is the use of grinding wheel as a grinding tool to process cylindrical gear or some gears, bevel gear, bevel gear and other processing tool tooth surface gear processing machine.



2,The grinding wheel holder can be used for vertical feed. The grinding gear is supported by the index frame and the tail seat, and the tooth surface is ground by longitudinal reciprocating movement through the table, and the tooth is divided after each grinding.



3,If the grinding wheel holder of the machine tool can enable the grinding wheel to enter the internal gear workpiece, the internal gear can be grinding. Shape grinding wheel gear grinding machine has simple structure, high efficiency, accuracy up to 5, suitable for batch production, especially suitable for gears with few teeth.







Technical parameter:
Processing saw blade thickness: 0.6-3mm
Saw blade width: 27-100mm
Working speed: Maximum 18 teeth/min
Grinding wheel size (outer diameter X hole) : ¢125mmX32mm
Grinding wheel line speed: 26m/s
Coolant pump flow rate: 501
Coolant cylinder volume: 80L
Total power: 2KW
Voltage: three-phase 380V
Mechanical weight: 600KG
Mechanical dimensions (L X W X H mm) : 800X800X1380

Grinding object:
Alloy band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used. Can grind all kinds of tooth shape, such as 3-4 teeth, 4/6 teeth, variable teeth and equal teeth, etc. The machine is simple and convenient to operate, suitable for large, medium and small machinery factory, wood processing, steel sawing processing plant, alloy band saw blade, bimetal band saw blade, frame saw blade tooth shape grinding indispensable equipment.

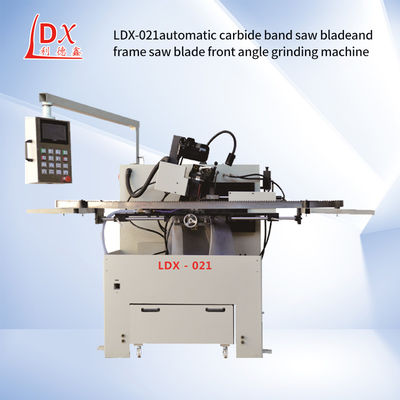

LDX-021 Full CNC Saw Blade Grinding Machine 0







LDX-021 Full CNC Saw Blade Grinding Machine 1
