Product Details:

Place of Origin: Foshan, Guangdong
Brand Name: lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X2000mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Range Of External Diameter Of Processing: ¢100-¢800mm Inner Bore Of Saw Blade: ¢10-220mm
Pitch Range: 7-100mm Tooth Face Angle: 5°~+30°
High Light:

Automatic Circular Saw Blade Grinding Machine

,

TCT Circular Saw Blade Grinding Machine

Product Description

LDX-026A TCT circular saw blade grinding machine automatic grinding machine manufacturers





Pay attention to the following points when operating the saw blade grinding machine:



1,Feed speed of grinding head.



2,The feed rate of grinding head, the selection of grinding wheel particle size is very important to the feed rate.



3,Tooth extraction mechanism can not be ignored. Regardless of the structure of the gear grinding machine, the accuracy of the tooth coordinates is designed to the quality of the sharpening tool, and the tooth needle is pressed in a reasonable position on the tooth surface when adjusting the machine, and it is also extremely critical to remove the tooth, the tooth claw should be flexible and reliable.







Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm
Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

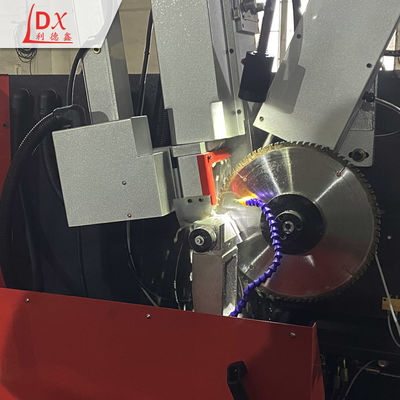

LDX-026A TCT Circular Saw Blade Grinding Machine Automatic Grinding Machine Manufacturers 0

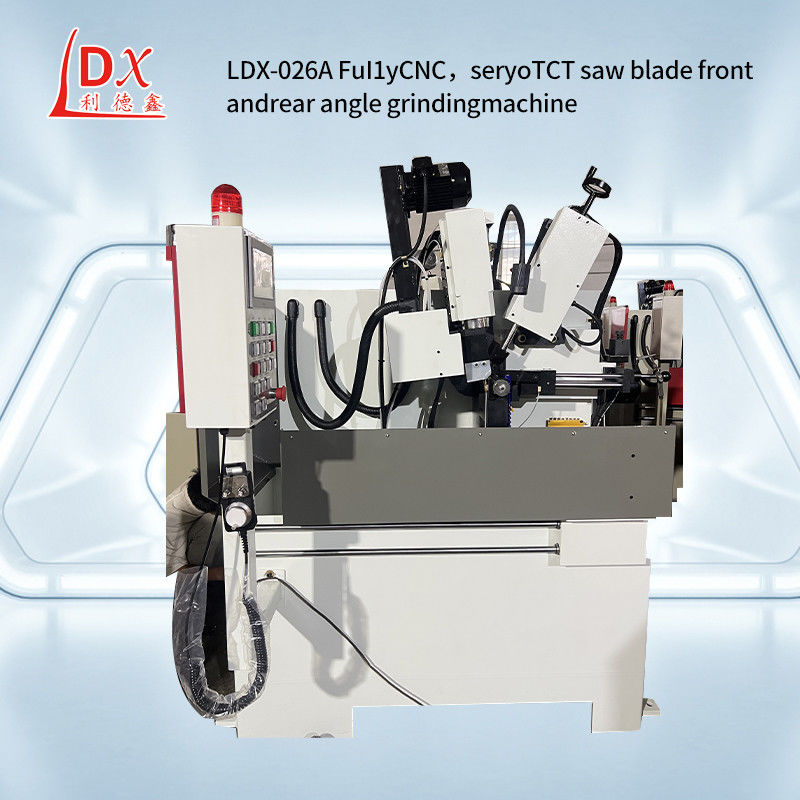

LDX-026A TCT Circular Saw Blade Grinding Machine Automatic Grinding Machine Manufacturers 1







LDX-026A TCT Circular Saw Blade Grinding Machine Automatic Grinding Machine Manufacturers 2
