Hard CNC TCT Saw Blade Grinding Machine Fully Automatic Grinding Machine

Hard CNC TCT Saw Blade Grinding Machine Fully Automatic Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong
Brand Name: lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1700X1300X2000mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Grinding Speed: 0.5-6mm/s Working Speed: Max. 20 Teeth/min
Cutter Grinding Stroke Range: Max. 25mm (adjustable) Teeth/min Negative Chamfer Grinding: -27°
High Light:

Fully Automatic Grinding Machine

,

Fully Automatic Saw Blade Grinding Machine

Product Description

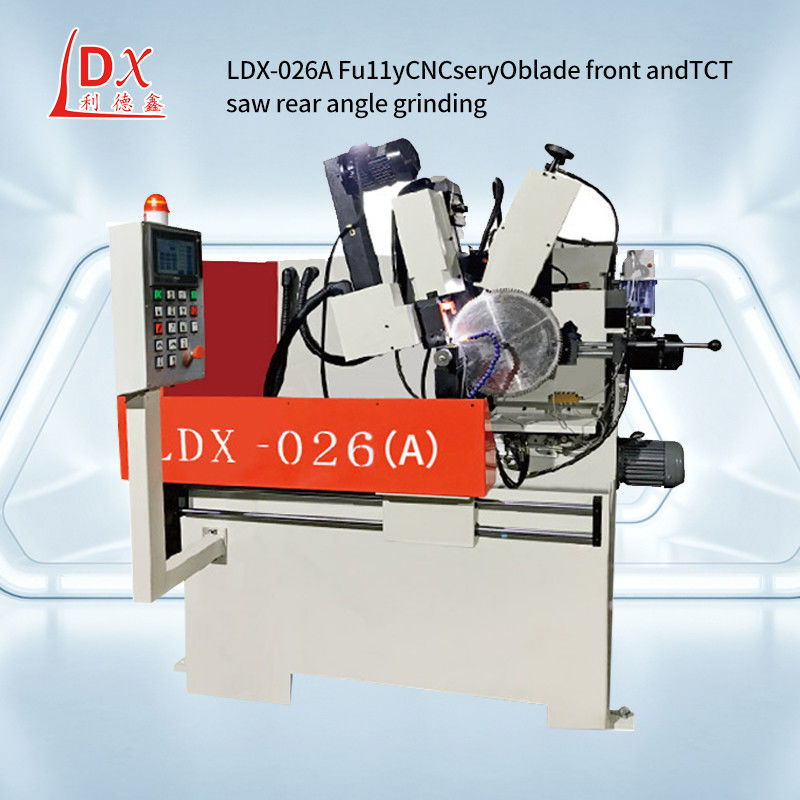

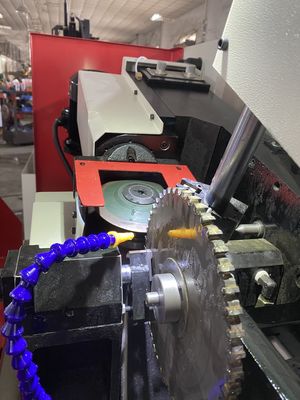

LDX-026A Hard CNC TCT Saw Blade Grinding Machine Fully Automatic Grinding Machine



Easy to operate:

1,The operation of woodworking saw blade grinding machine is relatively simple, as long as it is operated according to certain procedures.

2,The woodworking saw blade grinding machine also has automatic functions such as positioning, clamping, rotation, etc., which can automatically complete the positioning and clamping of the saw blade without manual intervention, significantly improving production efficiency.

3,Set multiple tooth shapes at one time





Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.






Hard CNC TCT Saw Blade Grinding Machine Fully Automatic Grinding Machine 0





Hard CNC TCT Saw Blade Grinding Machine Fully Automatic Grinding Machine 1





Hard CNC TCT Saw Blade Grinding Machine Fully Automatic Grinding Machine 2
