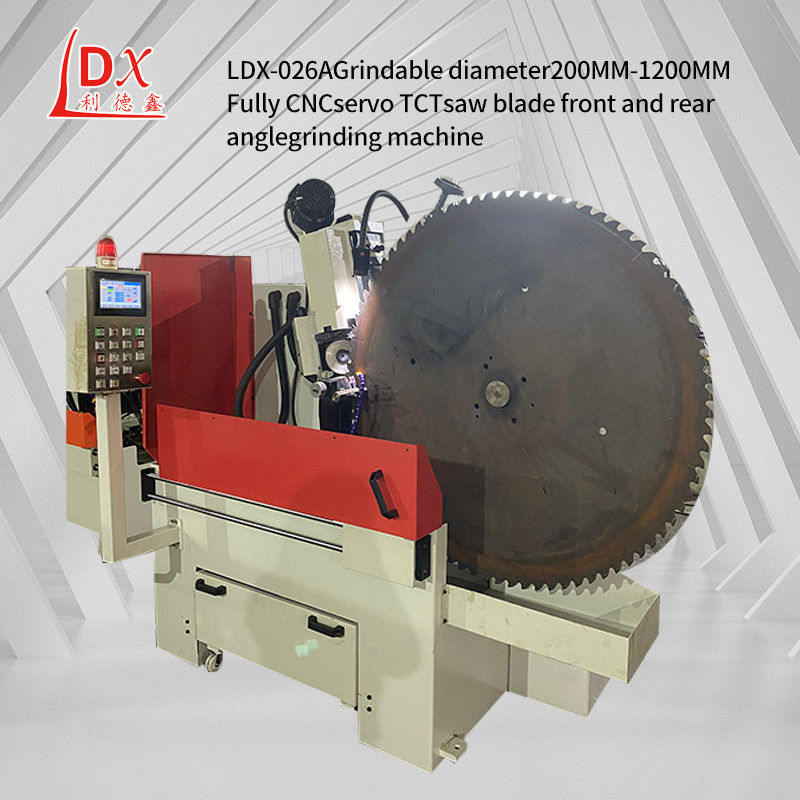

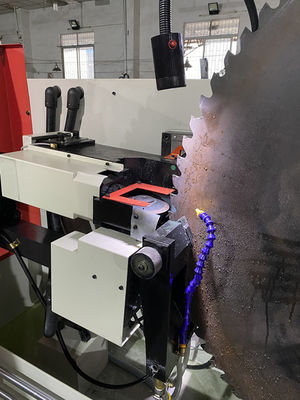

LDX-026 TCT Saw Blade CNC Grinding Machine Grinding Saw Blade Wholesale
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-026A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Appearance(Long*Width*Height):1600X1300X1900mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100unit |
|
Detail Information |
|||
| Total Power: | 2.2KW | Total Weight Of Equipment: | 1000KG |
|---|---|---|---|
| Range Of External Diameter Of Processing: | ￠300-￠1500mm | Thickness Of Saw Web (steel Plate): | 1-12mm |
| Pitch Range: | 7-100mm | Tooth Face Angle: | 5°~+30° |
| Tooth Top Dorsal Angle: | 6-45° | ||
| High Light: | CNC Grinding Saw Blade Wholesale,Saw Blade Wholesale Grinding Machine |
||
Product Description
LDX-026 TCT Saw Blade CNC Grinding Machine Grinding Saw Blade Wholesale
Saw blade custom thickness selection:
1,The thickness of the saw blade, that is, we often say sawing, too thick will cause material waste
2,Too thin will cause unstable sawing, so be sure to make it clear, if you don't know very well,
3,You can say your requirements to the manufacturer, and the customized manufacturer will judge according to experience.
Carbide saw blade usage:
1,After the carbide saw blade, it must be confirmed that the center hole of the saw blade is firmly fixed in the saw table. The cutting direction indicated by the arrow of the carbide saw blade is aligned with the rotation direction of the saw table. Do not install in the opposite direction, because the wrong direction will cause tooth loss.
2,After replacing the carbide saw blade, it is necessary to pre-turn for one minute before use, so that the saw table can be cut when it enters the working state.
3,When cutting materials, the aluminum saw blade in normal operation must be gently cut into the material, and it is forbidden to push hard.
| Main Technical Parameters : |
| Range of external diameter of processing:￠300-￠1500mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-12mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mmX2mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:1000KG |
| Appearance(Long*Width*Height):1600X1300X1900mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged. |
