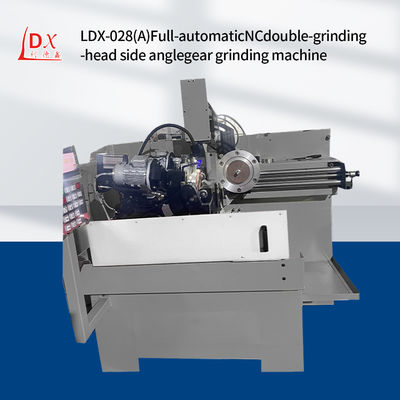

LDX-028A FULL CNC SERVO DOUBLE GRINDING HEAD SIDE SHARPENING MACHINE FACTORY DIRECT SALES
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-028A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Outer diameter dimensions: 1.75*1.4*2.0mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Operating Speed: | 18 Teeth/min | Feeding Stroke: | 1-28mm (stepless Variable Speed) |
|---|---|---|---|
| Grinding Wheel Dimensions: | 80*100*32mm | Thickness Of Saw Web (steel Plate): | 1-7mm |
| Aw Web Bore Diameter: | 12-220mm | Total Power: | 4.3KW |
| High Light: | CNC Circular Saw Blade Grinding Machine,Servo Circular Saw Blade Grinding Machine |
||
Product Description
LDX-028A Full CNC servo double grinding head side sharpening machine factory direct sales
How should alloy saw blade be maintained:
1,Generally speaking, if the saw blade is not used immediately, it should be placed flat or hung up with the inner hole, remember that the saw blade can not be placed on the items or feet, pay attention to moisture and corrosion prevention. At the same time, it is also necessary that if the saw blade is not sharp enough, it needs to be polished, and the original Angle cannot be changed in the process of grinding. If the processing is poor, it will affect the use of the product, resulting in the occurrence of danger.
2,Whether it is the saw blade factory or the storage of the alloy saw blade after use, attention should be paid to the saw blade moisture-proof and rust prevention, if not used immediately, it should be placed flat or use the inner hole to hang it up, and other items or feet can not be stacked on the flat alloy saw blade. In use, if it is no longer sharp and the cutting surface is rough, it must be re-polished in time, and the grinding can not change the original Angle and destroy the dynamic balance. Saw blade inner diameter correction, positioning hole processing, etc., must be carried out by the saw blade factory.
3,In principle, the saw blade reaming space can not exceed the original aperture 20mm, so as not to affect the balance of stress, and alloy grinding wheel is best to choose diamond saw blade. Metal bonded diamond grinding wheel not only has high bonding strength, good wear resistance, low wear and long life, low grinding cost, and can bear large loads. But the fly in the ointment is its sharpness is poor, easy to blockage.
4,In fact, we also need to pay attention to be sure to place the alloy saw blade in a suitable environment, which can effectively ensure the stability of the performance of the product, bring us great benefits and maintain the stability of the performance.
| Technical parameters: |
| Saw web machining diameter range:￠100-￠800mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-7mm |
| Tooth pitch: 5-80mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*100*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*2.0mm |
| Technical characteristics: |
| An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced. |
