Fully CNC Servo TCT Saw Blade Grinding Machine TCT Saw Blade Grinding Machine LDX-026A

Fully CNC Servo TCT Saw Blade Grinding Machine TCT Saw Blade Grinding Machine LDX-026A

Product Details:

Place of Origin: Foshan
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden box packaging Appearance(Long*Width*Height):1500X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T,Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Tooth Top Dorsal Angle: 6-45° Tooth Left/right Gradient: Tooth Top/tooth Face 45°
Cutter Grinding Stroke Range: Max. 25mm (adjustable) Teeth/min Coolant Cylinder Volume: 85L
Grinding Head Rotation Angle: Grinding Head Rotation Angle: 90° And 180° Grinding Speed: 26m/s
High Light:

servo tct saw blade grinding machine

,

tct saw blade grinding machine ldx-026a

,

cnc 4 inch saw blade for grinder

Product Description

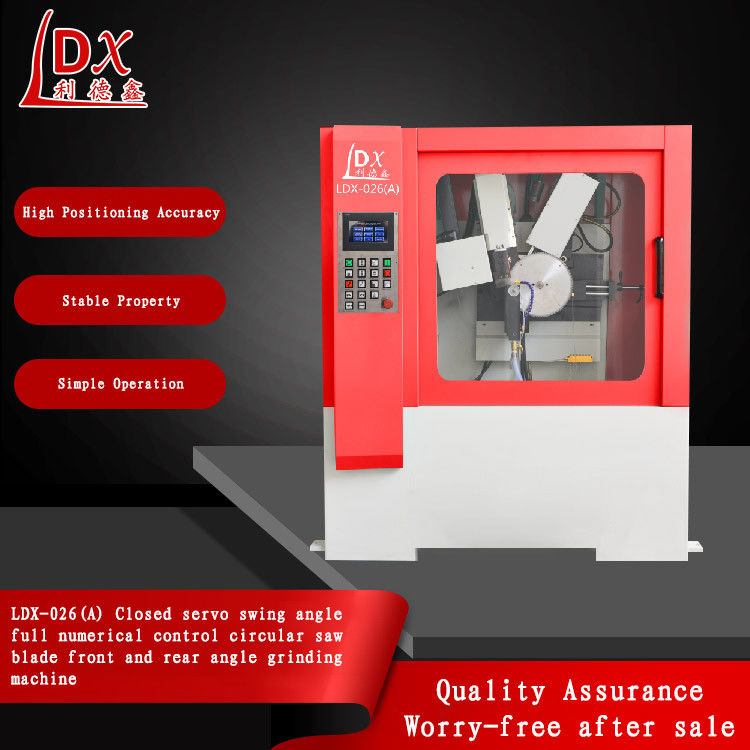

LDX-026A Fully CNC Servo TCT Saw Blade Grinding Machine TCT Saw Blade Grinding Machine



Flat tooth saw blade:

1,Features The tooth spacing of the flat tooth blade is equal, the tooth shape is flat and parallel, and the saw side perpendicular to the serration is relatively smooth, these characteristics make the flat tooth blade...

2,The more widely used in the woodworking industry is alternating teeth, that is, left and right teeth, this toothed saw blade is generally used to cut solid wood, multi-layer board. The cutting speed of this tooth shape is fast and the grinding is relatively simple. Flat tooth master...

3,Left and right teeth: the left and right teeth of the saw blade, also known as alternating teeth, are widely used in production and processing, and the cutting speed is also very fast, and the grinding is also very simple. Mainly used for cutting and crosssawing...





Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1900mm

Technical features::
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.



Fully CNC Servo TCT Saw Blade Grinding Machine TCT Saw Blade Grinding Machine LDX-026A 0





Fully CNC Servo TCT Saw Blade Grinding Machine TCT Saw Blade Grinding Machine LDX-026A 1





Fully CNC Servo TCT Saw Blade Grinding Machine TCT Saw Blade Grinding Machine LDX-026A 2
