• Full CNC Carbide Saw Blade Front Angle Grinding Machine
Full CNC Carbide Saw Blade Front Angle Grinding Machine

Full CNC Carbide Saw Blade Front Angle Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-021

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (L X W X H mm) : 800X800X1380
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Thickness: 0.6-3mm Saw Blade Width: 27-100mm
Working Speed: Maximum 18 Teeth/min Grinding Wheel Size (outer Diameter X Hole): ¢125mmX32mm
High Light:

ldx-021 tct saw blade grinding machine

,

ldx-021 4 inch saw blade for grinder

,

cnc tct saw blade grinding machine

Product Description

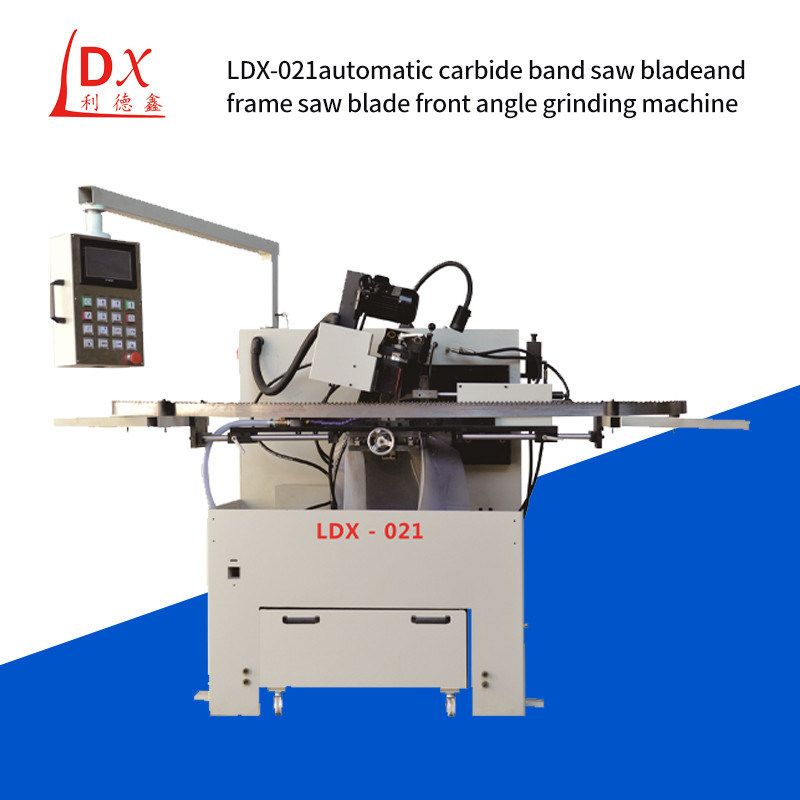

LDX-021 Full CNC Carbide Saw Blade Front Angle Grinding Machine



TCT saw blade grinding machine description:

1,The CNC process requires CNC control of each moving axis of the machine tool, and may be linked between some axes. This control can increase the function of the machine tool, such as hobbing small taper and drum gear processing becomes easier.

2,At the same time, by using semi-closed loop or full closed loop control, CNC compensation can improve the positioning accuracy and repeated positioning accuracy of each axis, so as to improve the machining accuracy and Cp value of the machine tool, and increase the reliability of the machine tool.

3,Secondly, when changing the variety, because it saves the time of calculating and changing the split-tooth hanging wheel, differential hanging wheel, feed and spindle shift, the gear shaper also saves the time of changing the inclined guide rail, thereby reducing the auxiliary processing time and increasing the flexibility of the machine tool. The simplification of the mechanical structure also helps to improve the rigidity of the machine tool and reduce thermal deformation.



Technical parameter:
Processing saw blade thickness: 0.6-3mm
Saw blade width: 27-100mm
Working speed: Maximum 18 teeth/min
Grinding wheel size (outer diameter X hole) : ¢125mmX32mm
Grinding wheel line speed: 26m/s
Coolant pump flow rate: 501
Coolant cylinder volume: 80L
Total power: 2KW
Voltage: three-phase 380V
Mechanical weight: 300KG
Mechanical dimensions (L X W X H mm) : 800X800X1380

Grinding object:
Alloy band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used. Can grind all kinds of tooth shape, such as 3-4 teeth, 4/6 teeth, variable teeth and equal teeth, etc. The machine is simple and convenient to operate, suitable for large, medium and small machinery factory, wood processing, steel sawing processing plant, alloy band saw blade, bimetal band saw blade, frame saw blade tooth shape grinding indispensable equipment.





Full CNC Carbide Saw Blade Front Angle Grinding Machine 0







Full CNC Carbide Saw Blade Front Angle Grinding Machine 1
