• Full CNC Carbide Saw Blade Double Grinding Head Side Angle Gear Grinding Machine
Full CNC Carbide Saw Blade Double Grinding Head Side Angle Gear Grinding Machine

Full CNC Carbide Saw Blade Double Grinding Head Side Angle Gear Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical size (length X width X height): 1700X1400X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Blade Thickness: 1-8mm Working Speed: Maximum 18 Teeth / Minute
Feed Stroke: 1-28 (infinitely Variable Speed)
High Light:

ldx-028b tct saw blade grinding machine

,

ldx-028b 4 inch saw blade for grinder

,

cnc tct saw blade grinding machine

Product Description

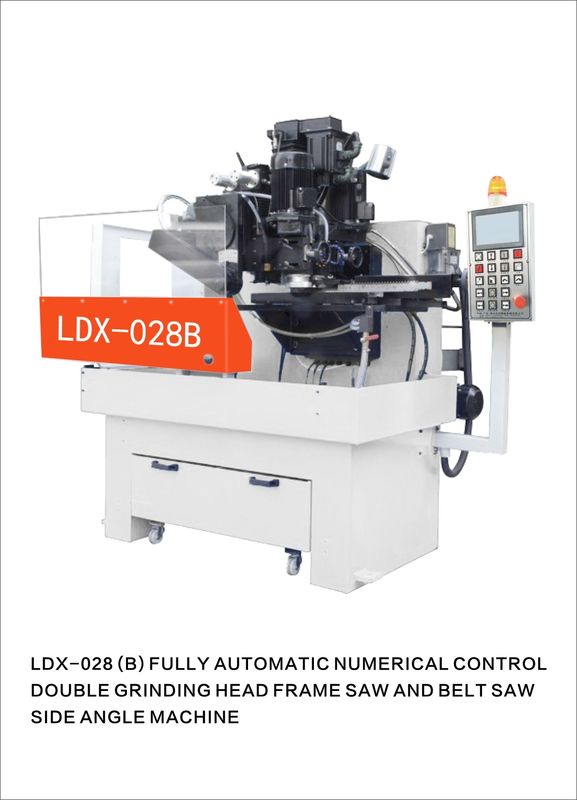

LDX-028B Full CNC Carbide Saw Blade Double Grinding Head Side Angle Gear Grinding Machine



Cutting speed of woodworking alloy saw blade grinding machine:

1,The cutting speed of the woodworking alloy saw blade grinding machine does not have a fixed standard value, which depends on a variety of factors, including the material of the saw blade, the tooth type, the nature of the material to be cut, the performance of the machine and the experience of the operator.

2,In order to ensure safe and effective cutting, it is recommended to refer to the operating manual and recommended parameters provided by the manufacturer of the saw blade and gear grinding machine.

3,These manuals usually provide detailed guidance on cutting speed, as well as advice on how to adjust the speed for specific applications





Technical Parameters:
Saw blade thickness: 1-8mm
Working speed: maximum 18 teeth / minute
Feed stroke: 1-28 (infinitely variable speed)
Grinding wheel size (outer diameter X hole): ¢125mmx32mm
Grinding wheel line speed: 26m / s
Coolant pump flow: 501/min
Cooling tank volume: 90L
Total power: 6 kW
Voltage: three-phase 380v
Mechanical weight: 1300KG
Mechanical size (length X width X height): 1700X1400X1900mm

Grinding object:
TCT band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used. Can grind all kinds of tooth shape, such as 3-4 teeth, 4/6 teeth, variable teeth and equal teeth, etc. The machine is simple and convenient to operate, suitable for large, medium and small machinery factory, wood processing, steel sawing processing plant, alloy band saw blade, bimetal band saw blade, frame saw blade tooth shape grinding indispensable equipment.
