• Hard Full CNC TCT Saw Blade Grinding Machine For Woodworking
Hard Full CNC TCT Saw Blade Grinding Machine For Woodworking

Hard Full CNC TCT Saw Blade Grinding Machine For Woodworking

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020(B)

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical size (length X width X height): 1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Sharpening Speed: 0.5-6mm/s Working Speed: Max. 20 Teeth/min
Mechanical Weight: 710KG
High Light:

cnc tct saw blade grinding machine

,

full cnc tct saw blade grinding machine

,

ldx-020b 4 inch saw blade for grinder

Product Description

LDX-020B Hard full CNC TCT saw blade grinding machine for woodworking



Saw blade grinding the best method:

1,Machine grinding. A professional saw blade sander is required. Install the saw blade on the machine

2,Adjust the grinding Angle and speed. Start the machine and start grinding, making sure the serrations grind evenly.

3,Use a finer grinding wheel for polishing, so that the surface of the saw blade is smooth, and finally wipe it clean with a rag.









Technical Parameters:
Processing saw blade diameter range: ¢100-800mm
Saw blade aperture: ¢10-220mm
Saw blade thickness (steel plate): 1-7mm
Pitch: 7-100mm
Tooth surface angle: 5 degrees ~ +30 degrees
Tip back angle: 6-45 degrees
Left and right inclination of the tooth: tooth top / tooth surface 45 degrees
Sharpening stroke range: up to 25mm (adjustable) teeth / minute
Sharpening speed: 0.5-6mm/s
Working speed: maximum 20 teeth / minute
Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head can rotate angle: 90 degrees and 180 degrees
Grinding wheel line speed: 26m / s
Coolant pump flow: 501/min
Cooling tank volume: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 710KG
Mechanical size (length X width X height): 1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

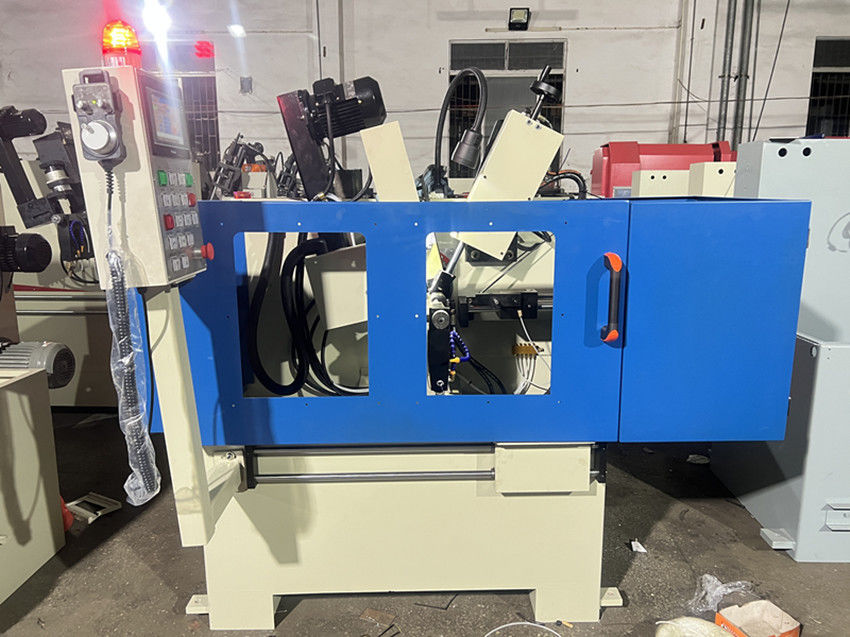

Hard Full CNC TCT Saw Blade Grinding Machine For Woodworking 0





Hard Full CNC TCT Saw Blade Grinding Machine For Woodworking 1
