Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (L X W X H mm) : 800X800X1080
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Thickness: 0.6-3mm Saw Blade Width: 27-100mm
Grinding Wheel Size (outer Diameter X Hole): ¢125mmX32mm Mechanical Weight: 200KG
High Light:

ldx-simple tct saw blade grinding machine

,

ldx-simple 4 inch saw blade for grinder

,

carbide tct saw blade grinding machine

Product Description

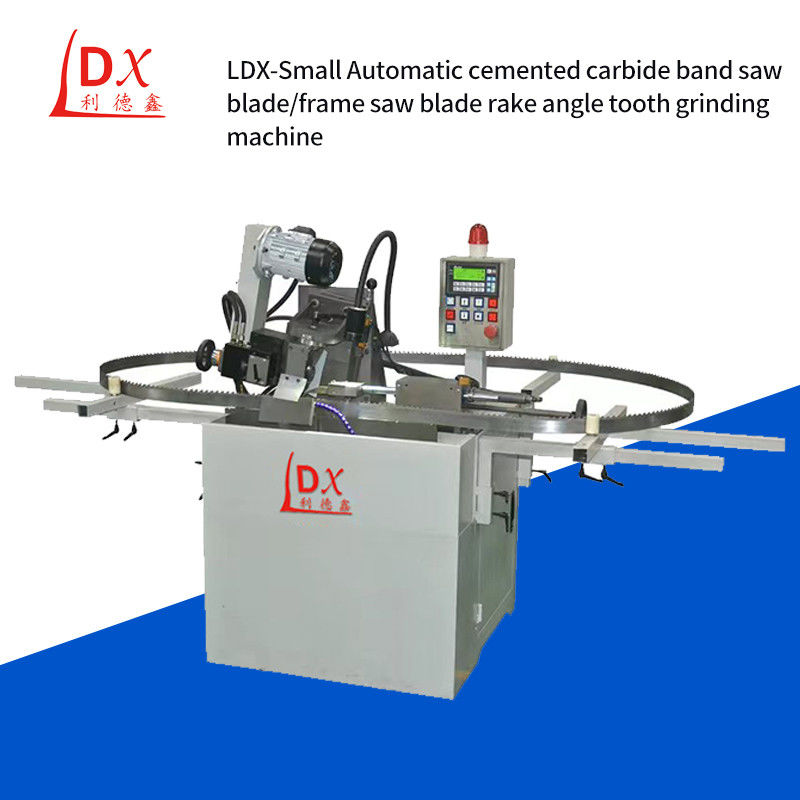

LDX-Simple Carbide Saw Blade Front Angle Grinding Machine



Processing saw blade technology process:

1,In addition to CNC machining, gear machining technology also includes some traditional repair methods, such as insert tooth method, surfacing welding method and screw tooth forming method. These methods have certain practical value for repairing the damaged gear.

2,The gear processing of the alloy saw blade grinding machine also involves some traditional processing technologies, such as hot die forging, normalizing, turning, hobbing and shagging, shaving, heat treatment and grinding processing. Together, these process steps ensure the machining quality and precision of the gear.

3,In general, the CNC process of the gear processing technology of the alloy saw blade grinding machine is a comprehensive project, which combines traditional processing technology and modern numerical control technology to improve the machining accuracy, efficiency and reliability of the gear.





Technical parameter:
Processing saw blade thickness: 0.6-3mm
Saw blade width: 27-100mm
Working speed: Maximum 18 teeth/min
Grinding wheel size (outer diameter X hole) : ¢125mmX32mm
Grinding wheel line speed: 26m/s
Coolant pump flow rate: 501
Coolant cylinder volume: 80L
Total power: 2KW
Voltage: three-phase 380V
Mechanical weight: 200KG
Mechanical dimensions (L X W X H mm) : 800X800X1080

Grinding object:
Alloy band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used. Can grind all kinds of tooth shape, such as 3-4 teeth, 4/6 teeth, variable teeth and equal teeth, etc. The machine is simple and convenient to operate, suitable for large, medium and small machinery factory, wood processing, steel sawing processing plant, alloy band saw blade, bimetal band saw blade, frame saw blade tooth shape grinding indispensable equipment.

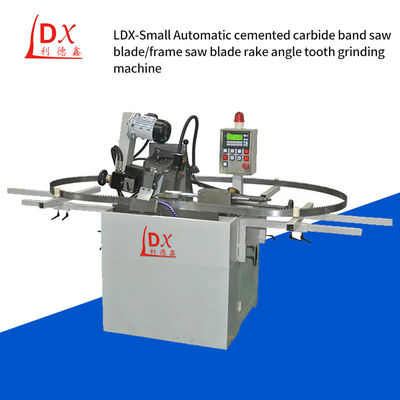

LDX-Simple Carbide Saw Blade Front Angle Grinding Machine 0
