Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Coolant Pump Flux:: 501/min Appearance(Long*Width*Height): 1500X1300X1800mm
Total Weight Of Equipment:: 900KG
High Light:

cnc tct saw blade grinding machine

,

cnc 4 inch saw blade for grinder

,

servo tct saw blade grinding machine

Product Description

LDX-026A ull CNC servo feed TCT saw blade grinding machine with ladder teeth



Developed into grinding wheel gear grinding machine features:

1,Generating gear grinding method is a gear grinding method based on meshing cutting principle.

2,The development grinding method has simple requirements on the grinding wheel. When grinding the same modulus gear, only the same grinding wheel is needed.

3,The dressing requirements of the grinding wheel are not high, so the tooth grinding machine has been fully developed, and a variety of products have been formed

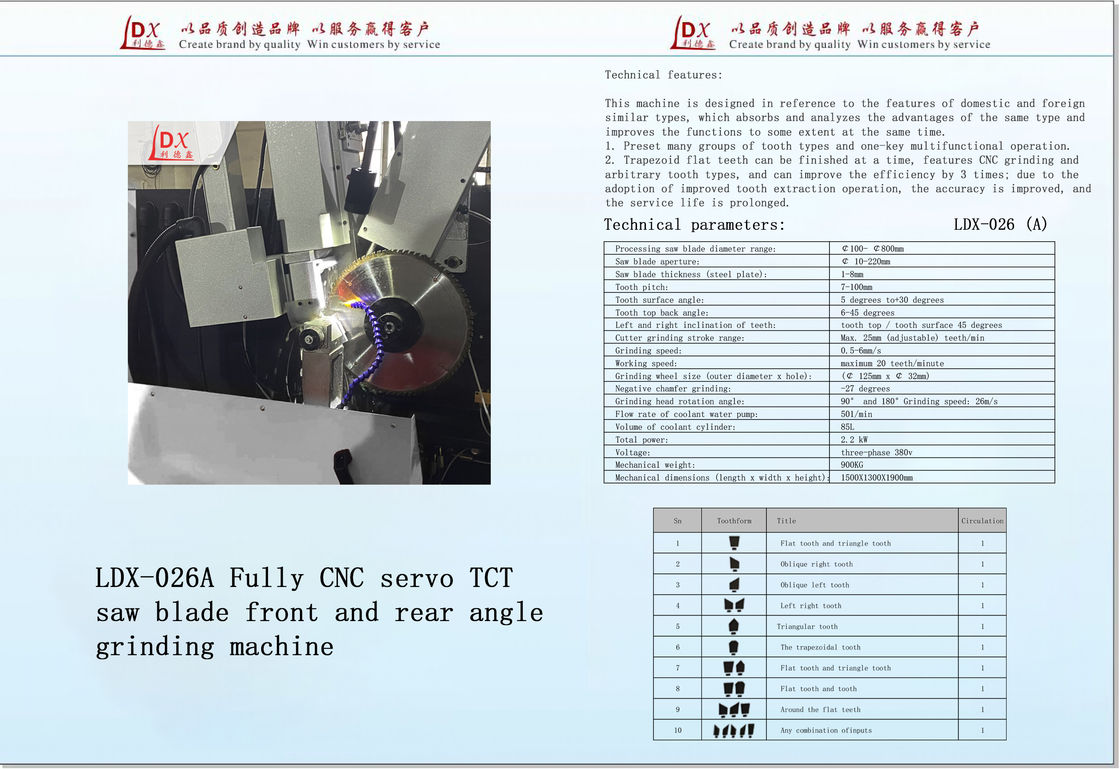

Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.






Ull CNC Servo Feed TCT Saw Blade Grinding Machine With Ladder Teeth LDX-026A 0



Ull CNC Servo Feed TCT Saw Blade Grinding Machine With Ladder Teeth LDX-026A 1







Ull CNC Servo Feed TCT Saw Blade Grinding Machine With Ladder Teeth LDX-026A 2
