• Automatic Swinging Angle TCT Saw Blade Grinding Machine For Woodworking LDX-020A
Automatic Swinging Angle TCT Saw Blade Grinding Machine For Woodworking LDX-020A

Automatic Swinging Angle TCT Saw Blade Grinding Machine For Woodworking LDX-020A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1300X1100X1600mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Blade Aperture: ¢ 10-220mm Negative Chamfer Grinding: -15 Degrees
Working Speed: Maximum 20 Teeth/minute
High Light:

swinging angle tct saw blade grinding machine

,

automatic tct saw blade grinding machine

,

automatic 4 inch saw blade for grinder

Product Description

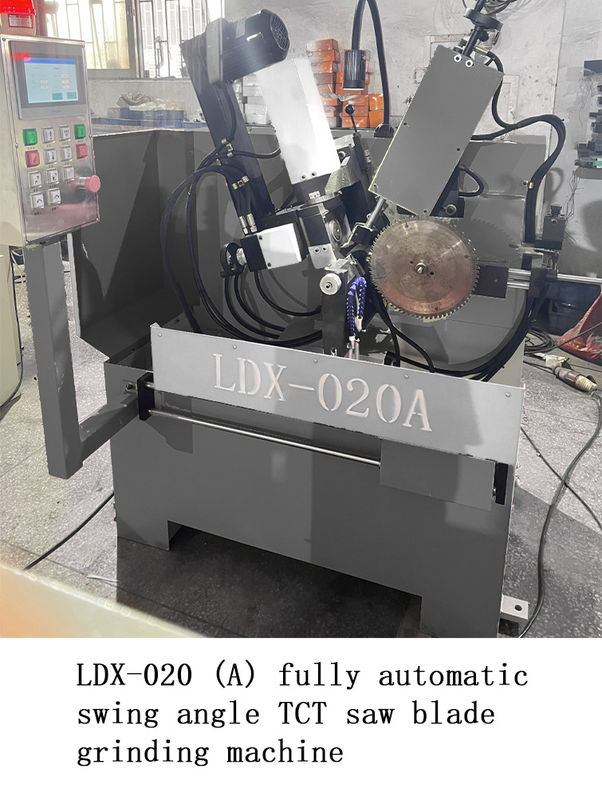

LDX-020A Automatic swinging Angle TCT saw blade grinding machine for woodworking



Automatic knife setting technology:

1,It is significant to improve the precision and efficiency of gear grinding machine to improve the precision and efficiency of gear machining.

2,The automatic tool setting of gear grinding machine can realize the adjustment of the tool without stopping, and the operation is simple, high efficiency and high precision.

3,The main idea of automatic and accurate tool setting is: the CNC system automatically obtains the edge of the tooth groove on both sides of the workpiece and records its position, and then calculates the exact position of the tooth groove midpoint, that is, the starting point of feed processing, and finally issues an instruction, and the servo system determines the position of the grinding wheel.







Technical parameter:
Processing saw blade diameter range: ¢100- ¢800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-100mm
Tooth surface angle: 5 degrees to+20 degrees
Tooth top back angle: 1-20 degrees
Left and right inclination of teeth: tooth tip/tooth surface 20 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢ 32mmX1mm)
Negative chamfer grinding: -15 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 680KG
Mechanical dimensions (length x width x height): 1300X1100X1600mm


Technical features:
1. This equipment can grind aluminum alloy cutting alloy saw blades and woodworking saw blades. It is easy to operate and can fully extend the service life of alloy saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers.





Automatic Swinging Angle TCT Saw Blade Grinding Machine For Woodworking LDX-020A 0







Automatic Swinging Angle TCT Saw Blade Grinding Machine For Woodworking LDX-020A 1



Automatic Swinging Angle TCT Saw Blade Grinding Machine For Woodworking LDX-020A 2
