• Full CNC Servo Swing Angle Automatic TCT Saw Blade Grinding Machine LDX-026A
Full CNC Servo Swing Angle Automatic TCT Saw Blade Grinding Machine LDX-026A

Full CNC Servo Swing Angle Automatic TCT Saw Blade Grinding Machine LDX-026A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Tooth Left/right Gradient: Tooth Top/tooth Face 45° Cutter Grinding Stroke Range: Max. 25mm (adjustable) Teeth/min
Voltage:three-phase: Three-phase 380v
High Light:

automatic tct saw blade grinding machine

,

tct saw blade grinding machine ldx-026a

,

cnc 4 inch saw blade for grinder

Product Description

LDX-026A Full CNC servo swing Angle automatic TCT saw blade grinding machine



Basic direction of oil circuit:

1,Oil pump → solenoid valve → various check valves and throttle valves → oil cylinder of each component.

2,Hydraulic oil is insufficient, should add hydraulic oil in time

3,The gear grinding oil pump is noisy, but the machine can work





Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

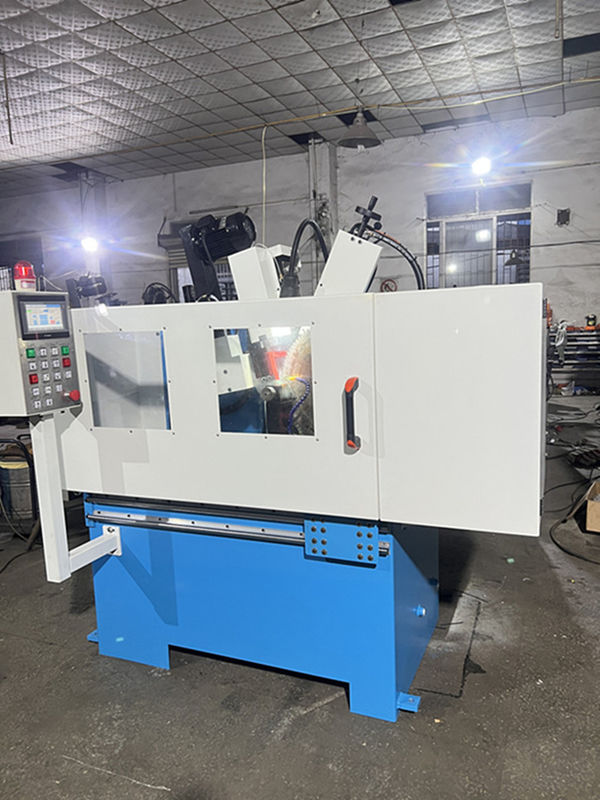

Full CNC Servo Swing Angle Automatic TCT Saw Blade Grinding Machine LDX-026A 0



Full CNC Servo Swing Angle Automatic TCT Saw Blade Grinding Machine LDX-026A 1





Full CNC Servo Swing Angle Automatic TCT Saw Blade Grinding Machine LDX-026A 2
