Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Total Power: 5KW Voltage: Three-phase 380v
Otal Weight Of Equipment: 900KG
High Light:

cnc tct saw blade grinding machine

,

tct saw blade grinding machine woodworking

,

cnc 4 inch saw blade for grinder

Product Description

LDX-026A CNC TCT saw blade grinding machine Woodworking saw blade grinding machine



Precautions for grinding teeth:

1,Before grinding teeth, check whether the saw blade is damaged, and whether the tooth spacing and tooth height are consistent.

2,Decide to use the right gear grinding tool, ordinary grinding wheels may not be suitable for all saw blades.

3,Determine the grinding Angle, usually around 20 degrees, but it needs to be adjusted according to the saw blade type and use









Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 5KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

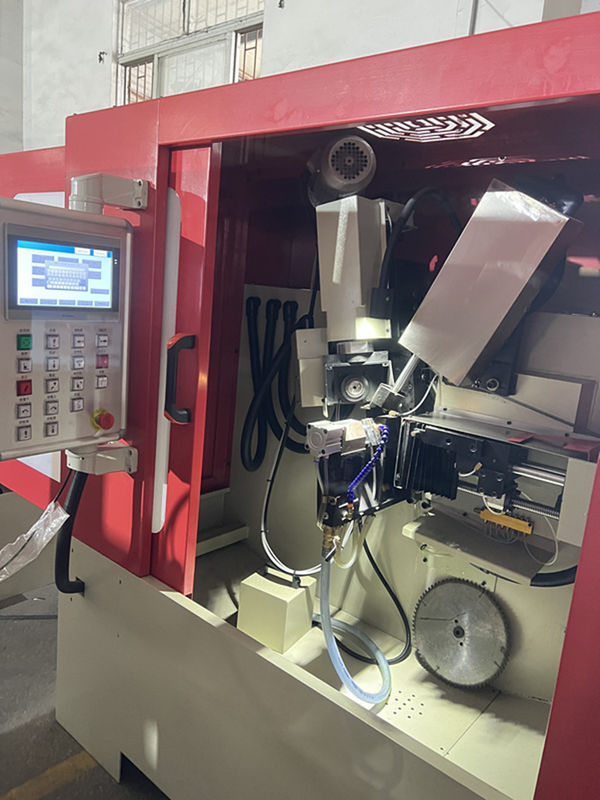

CNC TCT Saw Blade Grinding Machine Woodworking Saw Blade Grinding Machine 0





CNC TCT Saw Blade Grinding Machine Woodworking Saw Blade Grinding Machine 1



CNC TCT Saw Blade Grinding Machine Woodworking Saw Blade Grinding Machine 2
