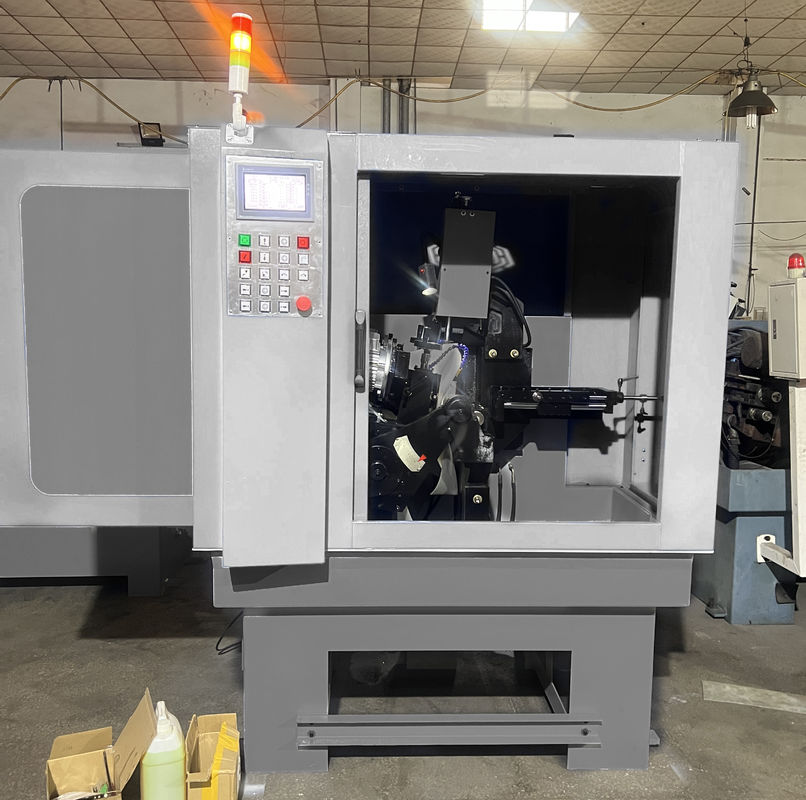

LDX-028A TCT Saw Blade Grinding Machine Servo Double Grinding Head Side Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-028A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Appearance(Long*Width*Height):1500X1300X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Coolant Cylinder Volume: | 90L | Thickness Of Saw Web (steel Plate): | 1-10mm |
|---|---|---|---|
| Grinding Wheel Dimensions: | 80*100*32mm | Front Inclination Angle, Inclination Angle: | 5°-15° |
| Radial Angle: | 3°-15° | Operating Speed: | 18 Teeth/min |
| Highlight: | 1-10mm tct saw blade grinding machine,tct saw blade grinding machine servo,1-10mm 4 inch saw blade for grinder |
||
Product Description

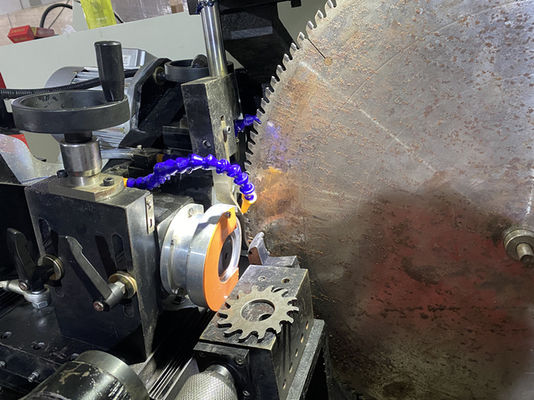

LDX-028A TCT Saw Blade Grinding Machine Servo Double Grinding Head Side Grinding Machine
How to choose the matrix of saw blade grinding machine:
1,The matrix deformation is large, the thickness is inconsistent, and the inner hole tolerance is large. When the above matrix defects exist, grinding errors will exist regardless of the type of equipment used.
2,The large deformation of the matrix results in the deviation of the two lateral angles. The inconsistency of matrix thickness will cause deviation of back Angle and front edge Angle. If accumulated tolerance is too large, the quality and precision of saw blade will be seriously affected.
3,Mechanical transmission has gear and mechanical clearance dovetail sliding accuracy is poor, the stable performance of the clip is low, the center adjustment of the support piece is difficult, the tooth pulling mechanism or reliability is poor, the two sides of the plane and the left and right back Angle are not in the same center grinding, resulting in large deviation, Angle is difficult to control, mechanical wear is difficult to ensure accuracy.
4,Lidexin Machinery manufacturing is specialized in producing saw blade grinding machine, the quality is trustworthy.
| Technical parameters: |
| Saw web machining diameter range:￠100-￠800mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-10mm |
| Tooth pitch: 5-80mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*100*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*2.0mm |
| Technical characteristics: |
| An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced. |
