Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*2.0mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Web Bore Diameter: 12-220mm Feeding Stroke: 1-28mm (stepless Variable Speed)
Front Inclination Angle, Inclination Angle:: 5°-15° Outer Diameter Dimensions: 1.75*1.4*2.0mm
High Light:

tct 4 inch saw blade for grinder

,

automatic tct saw blade grinding machine

,

automatic 4 inch saw blade for grinder

Product Description

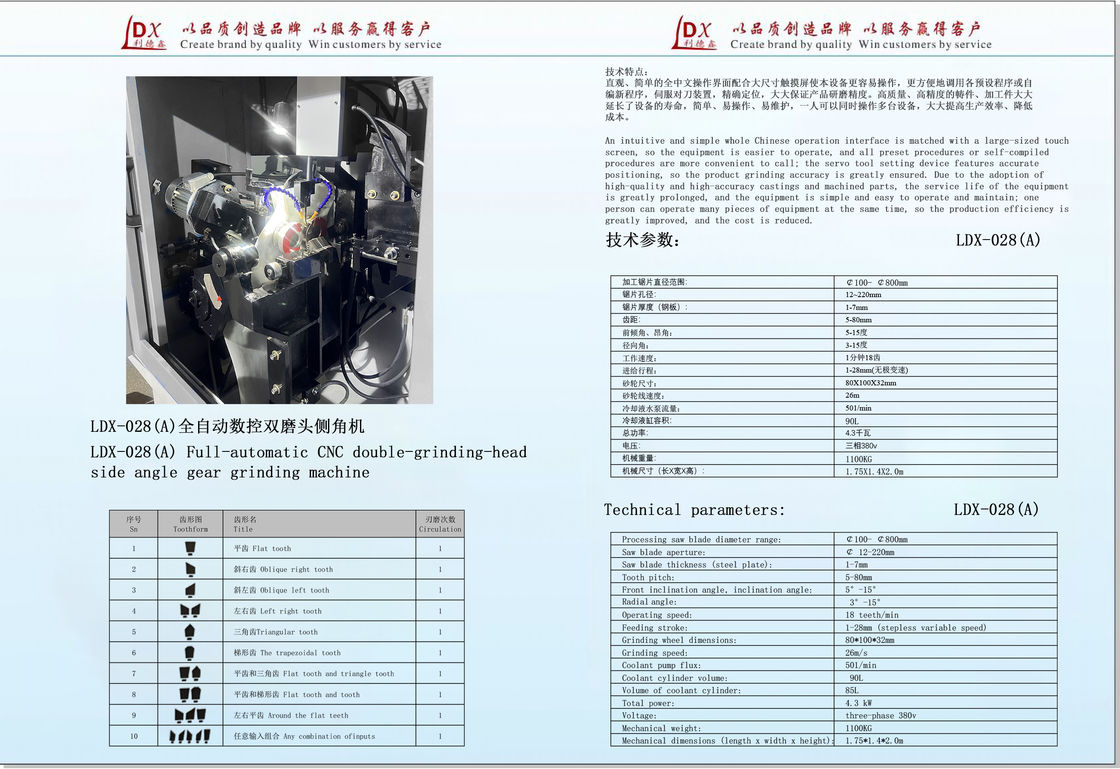

LDX-028A TCT saw blade automatic grinding machines TCT saw blade automatic grinding machines



The role of the gear grinding machine:

1,Improve product quality: The use of gear grinding machine can obtain a more fine and flat gear surface, so that the gear is more accurate, thereby improving the accuracy and quality of the product.

2,Improve production efficiency: The gear grinding machine can quickly and efficiently complete the processing and dressing of gears, reducing labor costs and production cycles.

3,Cost saving: The use of gear grinding machines can reduce the waste of materials and the cost of replacement, while saving the use of energy and consumables.





echnical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.
