Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*1.9m
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Grinding Wheel Dimensions: 80*125*32mm Technical Parameters: Saw Web Machining Diameter Range: ¢400-¢1800mm
Thickness Of Saw Web (steel Plate): 1-15mm
High Light:

ldx-028a tct saw blade grinding machine

,

ldx-028a 4 inch saw blade for grinder

,

woodworking tct saw blade grinding machine

Product Description

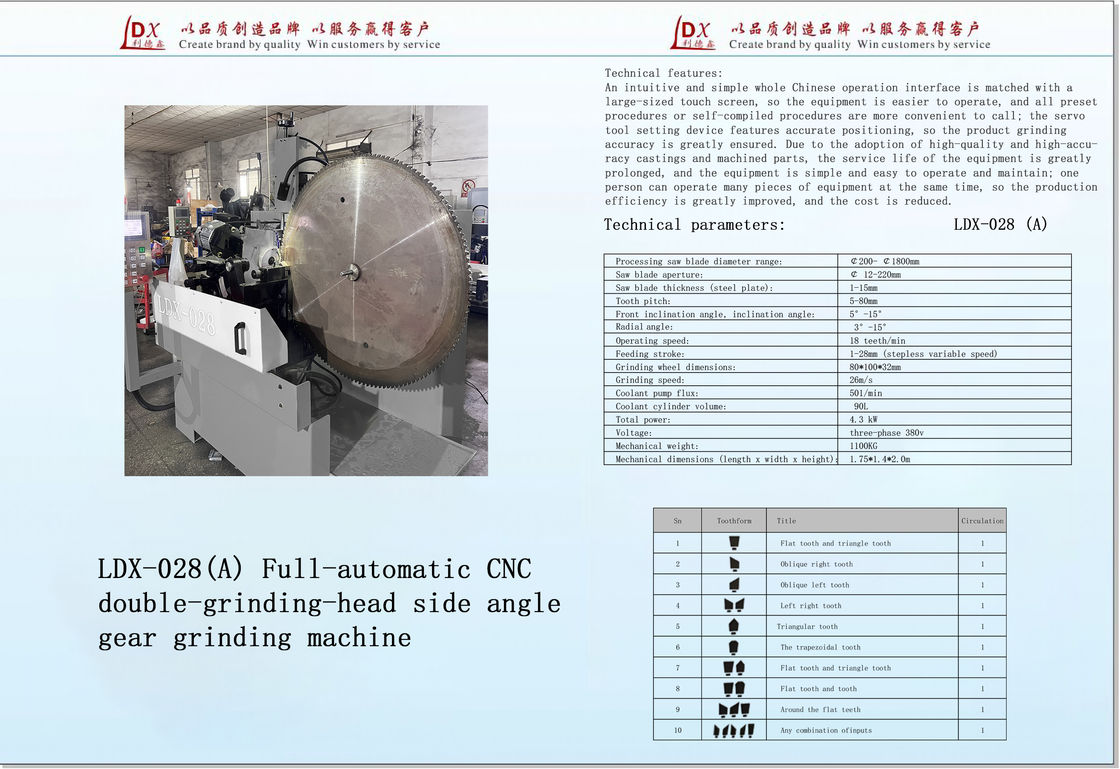

LDX-028A Woodworking Carbide Saw Blade Full CNC Double Grinding Head Side Sharpening Machine



Some adjustments before the saw blade grinding machine is used:

1,Saw blade thickness adjustment: In order to make the grinding of the saw blade average up and down, the center of the grinding wheel and the thickness center of the saw blade should be in a straight line.

2,Cutting Angle adjustment: Because the material to be cut by the saw blade is very variable, the suitable cutting Angle should be selected according to the material to be cut.

3,Cut the Angle, and then lock the clamping seat screws. Tooth type change: Generally there are two types of teeth, one is triangular teeth, the other is curved teeth, and the tooth type should be decided before grinding. The gear type should be changed when the machine is running, with the L-shaped plate to change the gear type change knob, select the tooth type to be ground.







Technical parameters:
Saw web machining diameter range:¢400-¢1800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-15mm
Tooth pitch: 5-110mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*125*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*1.9m

Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.
