• Large Carbide Circular Saw Blade Front And Rear Angle Grinding Machine
Large Carbide Circular Saw Blade Front And Rear Angle Grinding Machine

Large Carbide Circular Saw Blade Front And Rear Angle Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1900X1400X2000mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Saw Blade Thickness (steel Plate): 1-12mm Tooth Surface Angle: 5 Degrees To+30 Degrees
Grinding Head Rotatable Angle: 90 Degrees And 180 Degrees
High Light:

ldx-026a tct saw blade grinding machine

,

ldx-026a 4 inch saw blade for grinder

,

carbide tct saw blade grinding machine

Product Description

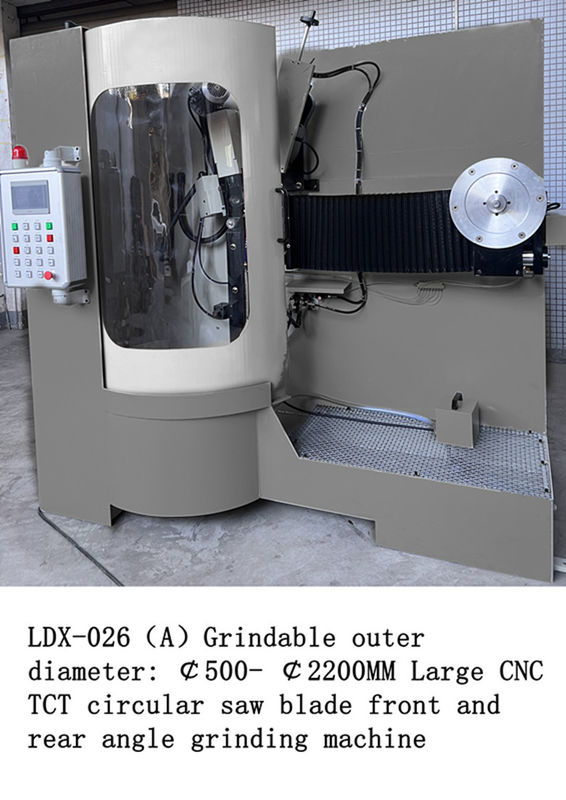

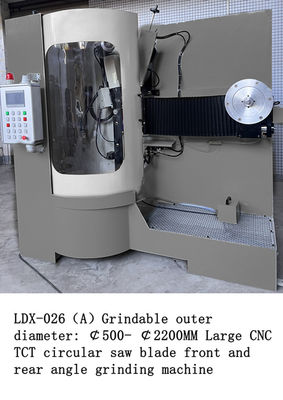

LDX-026A Large Carbide Circular Saw Blade Front And Rear Angle Grinding Machine



Saw blade grinding machine material which is better:

1,Compared with carbon tool steel, alloy tool steel has good heat resistance, good wear resistance and better processing performance, and the heat deformation temperature is 300℃-400℃ suitable for manufacturing alloy circular saw blades.

2,High speed tool steel has good hardenability, strong hardness and rigidity, less heat resistance and deformation, is ultra-high strength steel, thermoplastic stability suitable for manufacturing ultra-thin saw blades.







Technical parameters:
Processing saw blade diameter range: ¢500- ¢ 2200mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1900X1400X2000mm

Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.

1. Pre set multiple sets of tooth profiles for one click multifunctional operation.

2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.





Large Carbide Circular Saw Blade Front And Rear Angle Grinding Machine 0







Large Carbide Circular Saw Blade Front And Rear Angle Grinding Machine 1







Large Carbide Circular Saw Blade Front And Rear Angle Grinding Machine 2
