Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1800X1400X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Diameter Range: ¢300- ¢ 1800mm Saw Blade Aperture: ¢ 10-220mm
Mechanical Dimensions (length X Width X Height): 1800X1400X1800mm
High Light:

300-1800mm tct saw blade grinding machine

,

300-1800mm 4 inch saw blade for grinder

,

cnc tct saw blade grinding machine

Product Description

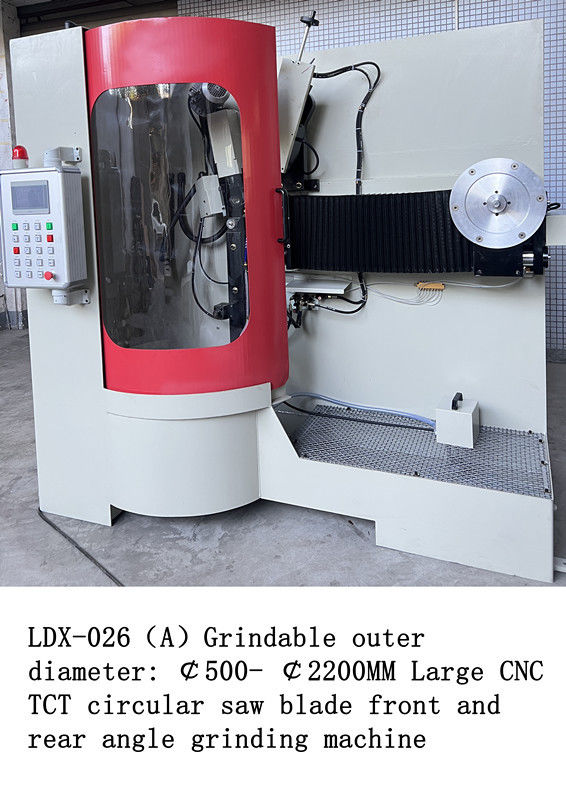

LDX-026A Can grind diameter 300-1800MM large CNC front and rear Angle grinding machine manufacturers



Features of saw blade grinding machine:

1,The main use of saw blade grinding machine is also counted as more common, as a cutting machinery equipment, it has more significant characteristics.

2,Its characteristics are determined by: an adjustment seat for vertically rotating the vertical Angle of the motor is arranged between the equipment and the slide seat in the sand wheel plate operation.

3,An Angle adjustment organization is provided on the adjusting seat to adjust the Angle of view of the level position, and the Angle of view of each direction of the sand wheel plate can be adjusted.







Technical parameters:
Processing saw blade diameter range: ¢300- ¢ 1800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-120mm
Tooth surface angle: 5 degrees to+30 degrees
Tooth top back angle: 6-45 degrees
Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head rotatable angle: 90 degrees and 180 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 2.2 kW
Voltage: three-phase 380v
Mechanical weight: 1200KG
Mechanical dimensions (length x width x height): 1800X1400X1800mm

Technical features:
The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.

1. Pre set multiple sets of tooth profiles for one click multifunctional operation.

2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.





300-1800MM Large CNC Front And Rear Angle Grinding Machine 0





300-1800MM Large CNC Front And Rear Angle Grinding Machine 1





300-1800MM Large CNC Front And Rear Angle Grinding Machine 2





300-1800MM Large CNC Front And Rear Angle Grinding Machine 3







300-1800MM Large CNC Front And Rear Angle Grinding Machine 4









300-1800MM Large CNC Front And Rear Angle Grinding Machine 5
