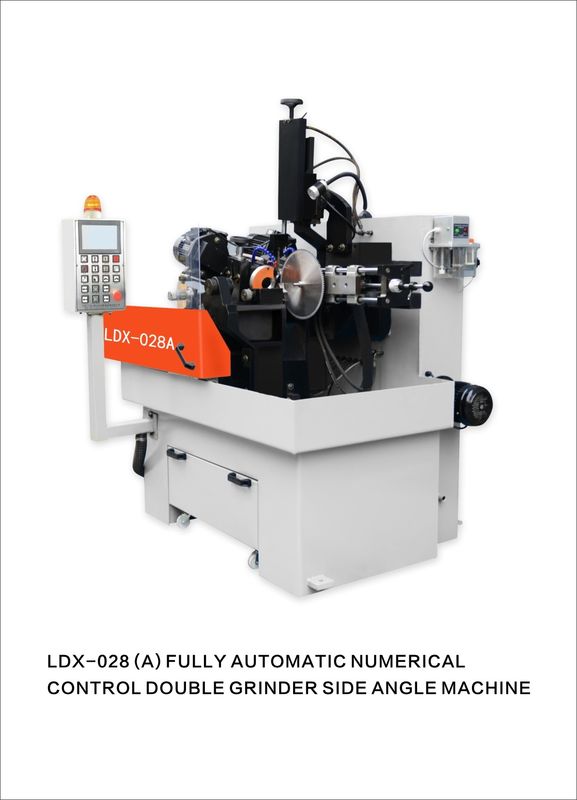

LDX-028A Open Servo Full CNC Double Grinding Head Side Gear Grinding Machine



The working principle of CNC saw blade grinding machine:

1,The narrow sides of the two rotating disk grinding wheels are equivalent to the two tooth faces of the rack. The workpiece moves through the rolling disc and steel belt, and the table moves back and forth along the axis of the workpiece to grind out the whole tooth width

2,After grinding the teeth, the dividing head frame will separate the teeth through the transition plate.

3,The machine can also be used to grind spiral teeth using additional devices. If the grinding wheel is inserted into the inner gear, the inner gear can be ground. This kind of machine tool is generally arranged horizontally. When the diameter is greater than 1 meter, the vertical arrangement is adopted. The accuracy can reach 4 levels. Suitable for grinding high precision gear.







Technical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.
