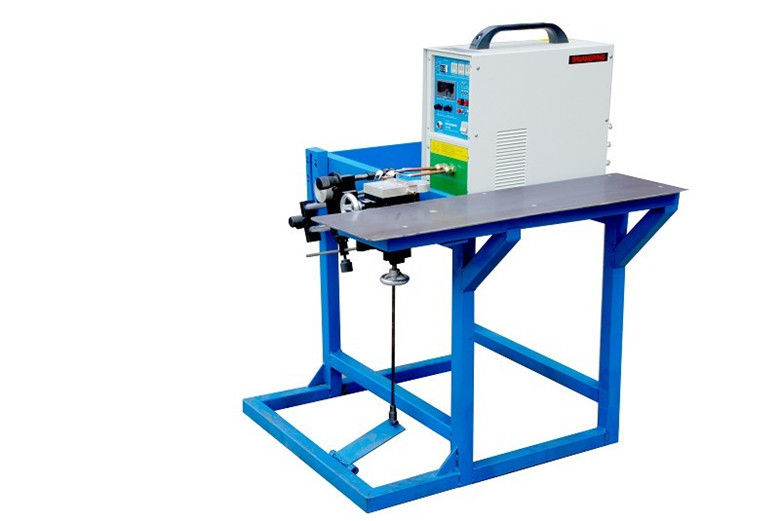

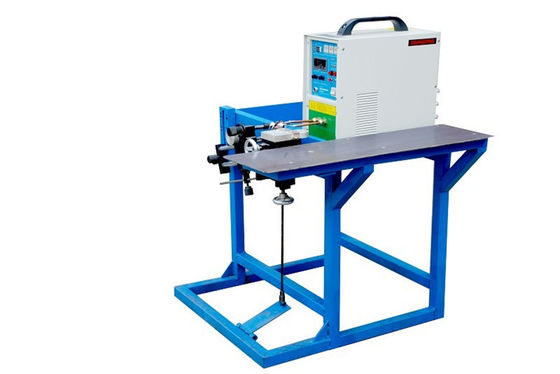

LDX-Manual High Frequency Tooth Welding Machine Factory Wholesale
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Appearance(Long*Width*Height):1200X1100X1300mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Tooth Diameter Range: | ¢100-¢800mm | Maximum Input Power: | 4KW |
|---|---|---|---|
| Oscillation Frequency: | 100-250KHZ | Heating Current: | 200-400A |
| Put Voltage: | Ingle Phase 220V 50HZ | Load Continuation Rate: | 80% |
| Cooling Water Requirement: | 0.2MPa 2L/min | ||
| High Light: | LDX-Manual Tooth Welding Machine,High Frequency Tooth Welding Machine |
||
Product Description
LDX-Manual High Frequency Tooth Welding Machine Factory Wholesale
Knowledge of high frequency welding machine:
1,High-frequency welding machine is a kind of welding equipment, its working principle is mainly by converting the low-frequency alternating current (usually 50Hz) input from the power grid into high-frequency alternating current (usually above 20000Hz), and using the principle of electromagnetic induction to generate high-frequency magnetic fields to heat and weld metal objects.
2,The heating speed of this welding machine is very fast, hot, and can instantly melt various metal materials. Its application is very wide, not only can be used for various metal materials welding, but also can be used for diathermy, melting, heat treatment and other processes. For example, in the forging industry, high-frequency welding machines are often used for steel plate heating, bending and forming, as well as diathermy forming of hardware tools. In addition, in the automotive industry, it is also used in the welding of metal parts, showing its excellent performance under the requirements of high precision, high quality and high speed welding.
3,The advantages of high frequency welding machine also include high precision equipment, easy operation, program control function, suitable for welding of different parts. At the same time, due to the semiconductor components used in its power amplifier, the waste gas and waste generated during welding are less than that of traditional welding, which has the characteristics of energy saving and environmental protection. However, the high cost of high-frequency welding equipment, the technical requirements for operators are relatively high, and regular maintenance is required, which increases the cost of use.
Technical Parameters:
1. Tooth diameter range: ¢100-¢800mm
2. Maximum input power: 4KW
3. Oscillation frequency: 100-250KHZ
4. Heating current: 200-400A
5. Holding current: 200-400A
6. Input voltage: single phase 220V 50HZ
7. Load continuation rate: 80%
8. Heating, heat preservation and cooling time: 0.1-9.9S
9. Cooling water requirement: 0.2MPa 2L/min
10. Weight: 18KG
11. Volume: 85 long X70 wide X100 high

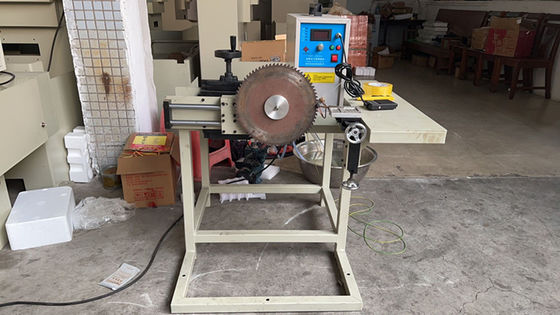

Application: Carbide saw blade welding, etc.
