LDX-026A1500MM Full CNC Carbide Saw Blade Front And Rear Angle Grinding Machine

Product Description

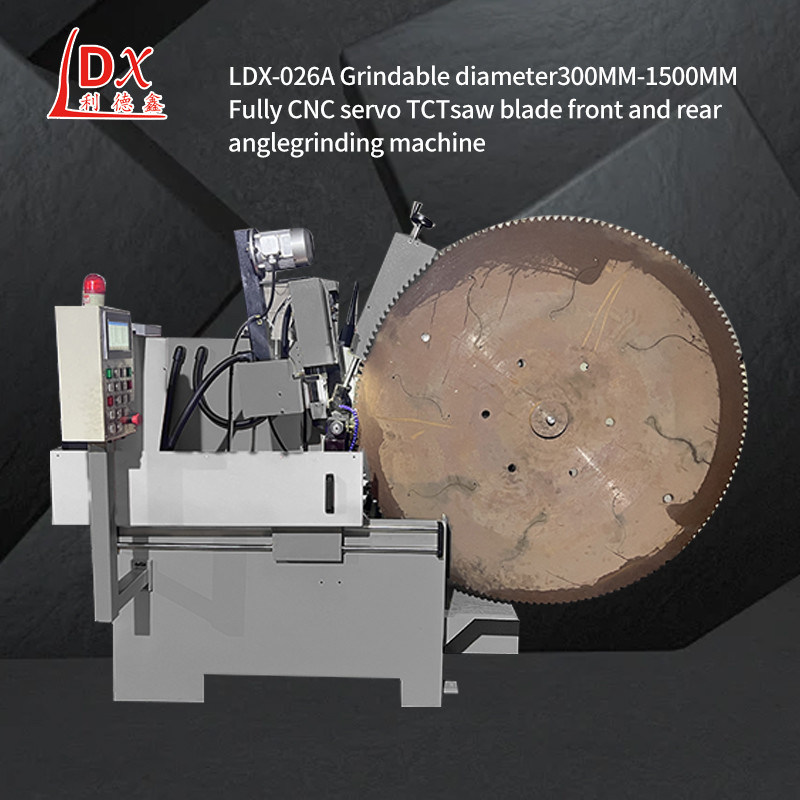

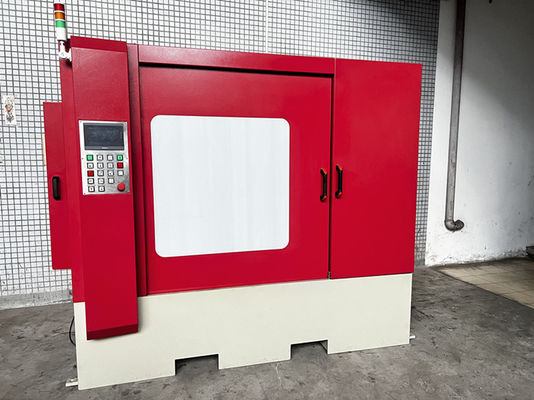

LDX-026A1500MM Full CNC Carbide Saw Blade Front And Rear Angle Grinding Machine

Gear grinding machine operation procedure:

1,There are generally two types of teeth, one is triangular teeth and the other is curved teeth. The tooth type should be determined before grinding. When the machine is running, the L-shaped wrench should be used to change the tooth shape and select the tooth shape to be ground.

2,Before starting, the distance between the grinding wheel and the saw blade should be at least 10mm, and then start. Before adjusting the push start, the distance between the grinding wheel and the saw blade should be maintained at least 10mm, and then start the machine, adjust the stroke adjustment rod of the push claw, so that the impact point of the push claw is in an appropriate position

3,After the machine starts, if the high and low teeth are grinding, adjust the difference between the high and low teeth adjustment rod, indicating needle and scale display. After the machine starts, if both the high and low teeth are grinding, adjust the adjustment lever for the difference between the high and low teeth, and the indicator needle and scale are displayed as zero.

Automatic alignment technology is designed to quickly and accurately obtain the position of the tooth groove boundary, which is the key to achieve accurate tool alignment. Currently, there are a variety of ways to achieve automatic alignment, some of which are common including:

1,Acoustic emission sensor (AE) tool setting method: Tool setting is performed by monitoring changes in the frequency of noise generated by contact and non-contact of grinding wheels and gears. This method has higher requirements for acoustic emission sensors, and also has certain requirements for electromagnetic shielding function of electrical systems. If the signal is weak and is not detected by the sensor, damage to the gear workpiece may occur.

2,In-machine measurement system tool method: Large CNC forming gear grinding machines are usually equipped with in-machine measurement system, using this system for grinding tool, not only high accuracy, but also no damage to the gear. At the same time, the system can also calculate the grinding allowance of the gear blank, so as to formulate the best grinding method.

3,In addition, in order to achieve automatic alignment, it can also be adjusted according to the machining program editing principle of the CNC gear grinding machine. For example, according to the module and accuracy requirements of the workpiece material, the appropriate single-step tool amount and workpiece frame movement speed are selected. When there is displacement in the machining program, the feed speed should be reduced, and a certain feed speed should be retained after the displacement.
