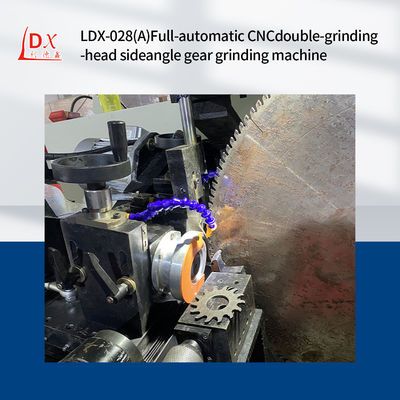

LDX-028A Automatic TCT Saw Blade Double Grinding Head Side Angle Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-028A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Outer diameter dimensions: 1.75*1.4*2.0mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Web Machining Diameter Range: | ￠100-￠800mm | Saw Web Bore Diameter: | 12-220mm |
|---|---|---|---|
| Thickness Of Saw Web (steel Plate): | 1-7mm | Front Inclination Angle, Inclination Angle: | 5°-15° |
| Total Power: | 4.3KW | Coolant Pump Flux: | 501/min |
| Highlight: | Automatic TCT Saw Blade Grinding Machine,Automatic Side Angle Grinding Machine |
||
Product Description
LDX-028A Automatic TCT saw blade double grinding head side Angle grinding machine
Angle adjustable electric grinding machine for circular saw blades:
1,Circular saw blade grinding refers to a new type of electric grinding machine that can adjust the Angle of circular saw blade. The saw blade grinding machine adopts a combination of fixed motor and grinding wheel to grind the saw blade.
2,The gear grinding machine of this structure realizes the efficient operation of the mechanical grinding blade, including a guide rail seat, a grinding wheel working device, a gear working device and a gear gear device.
3,The grinding wheel working device comprises a driving motor and a grinding wheel. The driving motor drives the grinding wheel to rotate. The guide rail seat and the gear shifting device are installed on the work table.
4,The grinding wheel is characterized in that an adjustment seat is arranged between the grinding wheel working device and the guide rail seat for vertically adjusting the longitudinal Angle of the rotating motor, and an Angle adjustment mechanism is arranged on the adjusting seat to adjust the horizontal position Angle, and the Angle adjustment of the grinding wheel in all directions can be carried out.
5,The operation is simple and easy to learn, and the novice can become a professional technician in a very short time
| Technical parameters: |
| Saw web machining diameter range:￠100-￠800mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-7mm |
| Tooth pitch: 5-80mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*100*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*2.0mm |
| Technical characteristics: |
| An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced. |
