LDX-026B CNC Grinding Machine For Woodworking Carbide Saw Blade

LDX-026B CNC Grinding Machine For Woodworking Carbide Saw Blade

Product Details:

Place of Origin: Foshan
Brand Name: Lidexin
Certification: CE,ISO
Model Number: LDX-020(B)

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden box packaging Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Processing Saw Blade Diameter Range: ¢100- ¢800mm Pitch: 7-100mm
Tooth Surface Angle: 5 Degrees ~ +30 Degrees Tip Back Angle: 6-45 Degrees
Mechanical Size (length X Width X Height): 1500X1300X1800mm Grinding Head Can Rotate Angle: 90 Degrees And 180 Degrees
High Light:

ldx-026b cnc grinding machine

,

ldx-026b 4 inch saw blade for grinder

,

cnc 4 inch saw blade for grinder

Product Description

LDX - 026B CNC grinding machine for woodworking carbide saw blade



Product characteristics:



1. Efficient and accurate: The CNC system can precisely control the grinding depth and Angle to ensure the precision and sharpness of the saw blade after grinding. At the same time, the efficient grinding speed greatly improves the production efficiency.

2. Easy to operate: humanized operation interface, so that operators can quickly get started. Rapid grinding of saw blade can be achieved by simple operation.

3. Durable and stable: The machine is made of high quality materials to ensure the stable performance of the equipment during long-term use. At the same time, the easy-to-maintain design reduces the maintenance cost of the equipment.

4. Widely applicable: Suitable for various specifications of alloy saw blade grinding, to meet different sawing processing needs.







Application field:

TCT saw blade grinding machine is widely used in wood, metal, plastic and other materials sawing processing field. Whether it is furniture manufacturing, architectural decoration or automotive manufacturing, this machine can provide you with efficient and accurate saw blade grinding solutions.









Technical Parameters:
Processing saw blade diameter range: ¢100-800mm
Saw blade aperture: ¢10-220mm
Saw blade thickness (steel plate): 1-7mm
Pitch: 7-100mm
Tooth surface angle: 5 degrees ~ +30 degrees
Tip back angle: 6-45 degrees
Left and right inclination of the tooth: tooth top / tooth surface 45 degrees
Sharpening stroke range: up to 25mm (adjustable) teeth / minute
Sharpening speed: 0.5-6mm/s
Working speed: maximum 20 teeth / minute
Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm)
Negative chamfer grinding: -27 degrees
Grinding head can rotate angle: 90 degrees and 180 degrees
Grinding wheel line speed: 26m / s
Coolant pump flow: 501/min
Cooling tank volume: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 710KG
Mechanical size (length X width X height): 1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

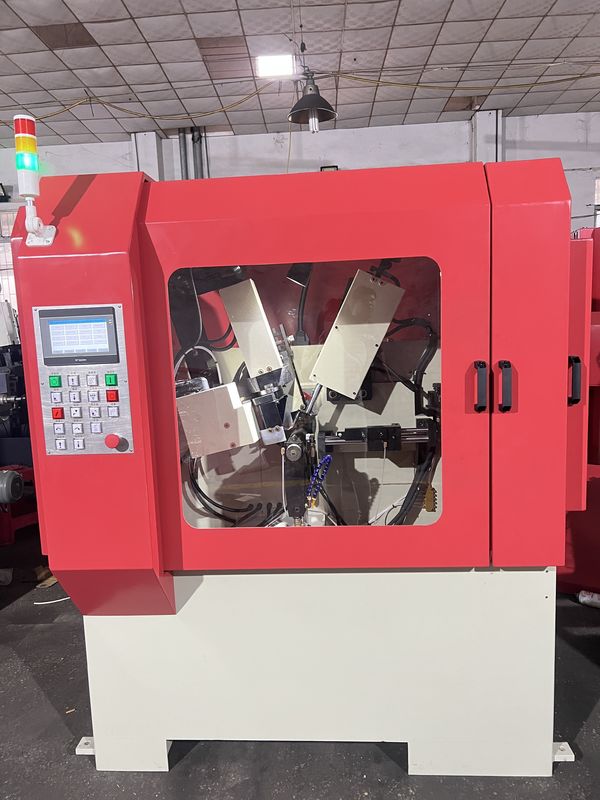

LDX-026B CNC Grinding Machine For Woodworking Carbide Saw Blade 0



LDX-026B CNC Grinding Machine For Woodworking Carbide Saw Blade 1



LDX-026B CNC Grinding Machine For Woodworking Carbide Saw Blade 2
