Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-028A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Outer diameter dimensions: 1.75*1.4*2.0mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Grinding Speed: 26m/s Coolant Pump Flux: 501/min
Weight: 1,100KG
High Light:

cnc 4 inch saw blade for grinder

,

ldx-028a cnc grinding machine

,

ldx-028a 4 inch saw blade for grinder

Product Description

LDX-028A Full CNC Grinding Machine Full Servo Double Grinding Head Side Grinding Machine



Stability and reliability:

1,Circular saw blade automatic gear grinding machine should have a stable and reliable mechanical structure and control system to ensure the stability and reliability of long-term continuous work.

2,Circular saw blade automatic gear grinding machine should have the ability to adapt to different materials and thickness of saw blade materials, in order to reduce equipment idle rate and improve production flexibility.

3,The automatic grinding machine with automatic and intelligent functions can reduce the difficulty of manual operation and the error rate, and improve production efficiency. For example, automatic feeding, automatic grinding, automatic counting and other functions can greatly reduce manual intervention and reduce the probability of error.







Technical parameters:
Saw web machining diameter range:¢100-¢800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.

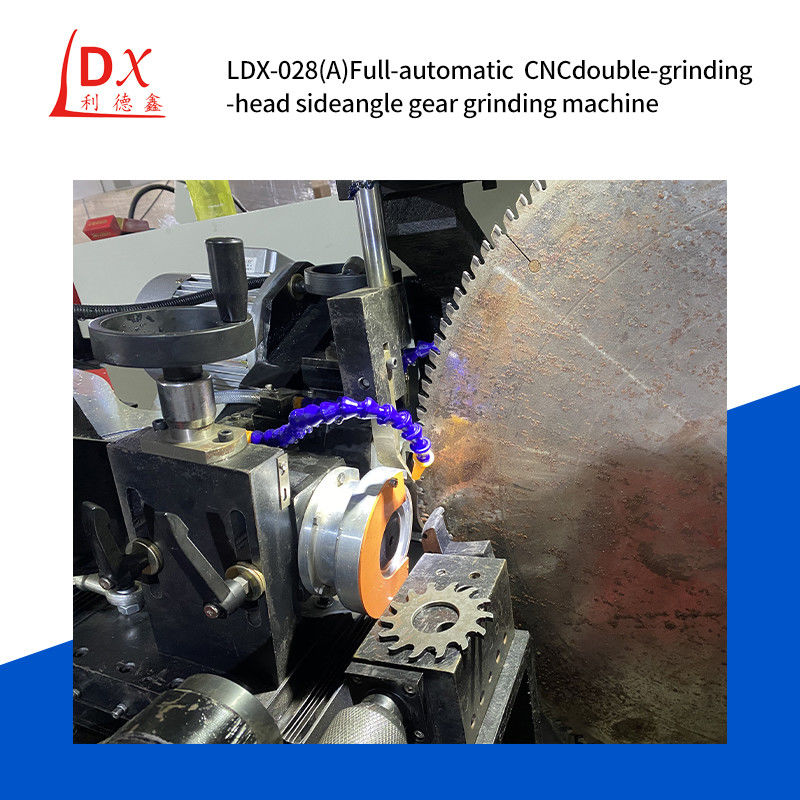

LDX-028A Full CNC Grinding Machine Full Servo Double Grinding Head Side Grinding Machine 0





LDX-028A Full CNC Grinding Machine Full Servo Double Grinding Head Side Grinding Machine 1



LDX-028A Full CNC Grinding Machine Full Servo Double Grinding Head Side Grinding Machine 2
