TCT Circular Saw Blade Front And Rear Angle Full CNC Grinding Machine LDX-026A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Range Of External Diameter Of Processing: ¢300-¢1400mm Inner Bore Of Saw Blade: ¢10-220mm
Tooth Top Dorsal Angle: 6-45°
High Light:

220mm cnc grinding machine

,

10mm 4 inch saw blade for grinder

,

ldx-026a cnc grinding machine

Product Description

LDX-026A TCT Circular Saw Blade Front And Rear Angle Full CNC Gear Grinding Machine



Gear grinding machine technical parameters:

1,Power: Select the right power according to the actual production needs to ensure grinding efficiency and stability.

2,Tooth shape: Select the corresponding grinding machine according to the tooth shape requirements of the circular saw blade to ensure that the grinding quality meets the requirements.

3,Precision: Select equipment with high-precision drive systems and grinding technology to ensure grinding accuracy and stability.

4,Surface roughness: The appropriate surface roughness helps to improve the cutting quality and efficiency of the circular saw blade, and should be selected according to actual needs.







Main Technical Parameters :
Range of external diameter of processing:¢200-¢1400mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

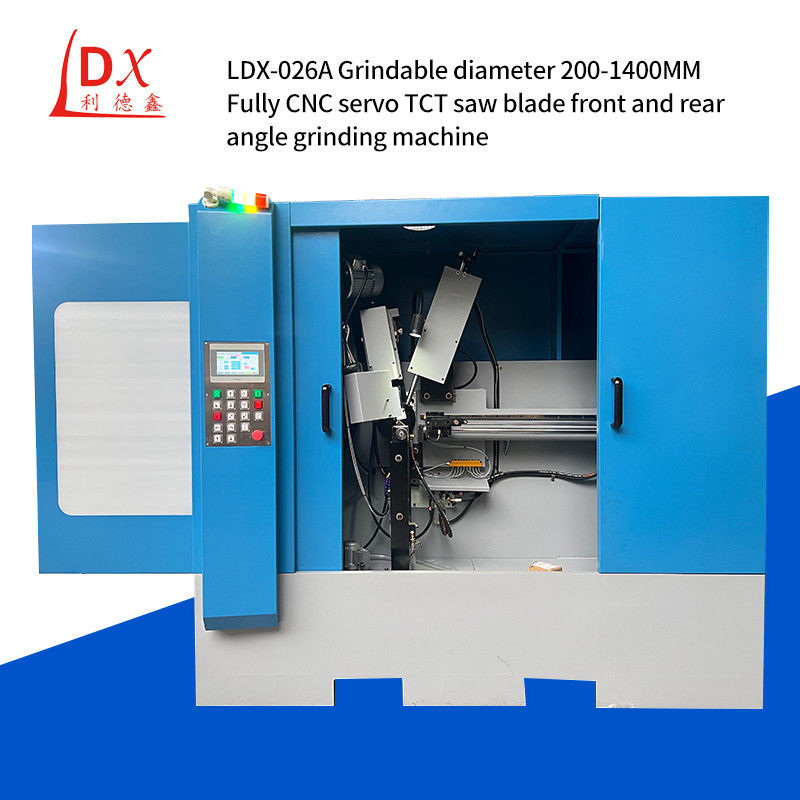

TCT Circular Saw Blade Front And Rear Angle Full CNC  Grinding Machine LDX-026A 0











TCT Circular Saw Blade Front And Rear Angle Full CNC  Grinding Machine LDX-026A 1
