LDX-026A  Large TCT Saw Blade Full CNC Grinding Machine

LDX-026A Large TCT Saw Blade Full CNC Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1600X1300X1900mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Grinding Speed: 0.5-6mm/s Tooth Top Dorsal Angle: 6-45°
Tooth Face Angle: 5°~+30° Grinding Wheel Dimensions (outer Diameter * Bore): (¢125mm*¢32mmX2mm)
High Light:

cnc grinding machine ldx-026a

,

12mm cnc grinding machine

,

1mm 4 inch saw blade for grinder

Product Description





LDX-026A Large TCT Saw Blade Full CNC Grinding Machine





The common faults of alloy circular saw blade automatic gear grinding machine mainly include the following aspects:

1,Reduced grinding accuracy: the size deviation of the circular saw blade after grinding is large, which affects the use effect.

2,Low grinding efficiency: there are pauses and stuck phenomena in the grinding process, which affect the production efficiency.

3,Excessive noise: The noise generated during the operation of the equipment exceeds the standard, which affects the health of workers.

4,Excessive vibration: Strong vibration occurs during the operation of the equipment, which affects the service life of the equipment.

5,Hydraulic system failure: hydraulic system leakage, insufficient pressure and other problems, affecting the normal operation of the equipment.







Main Technical Parameters :
Range of external diameter of processing:¢300-¢1500mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX2mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:1000KG
Appearance(Long*Width*Height):1600X1300X1900mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

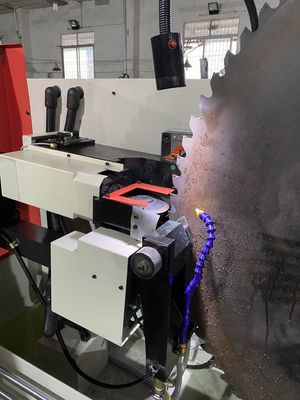

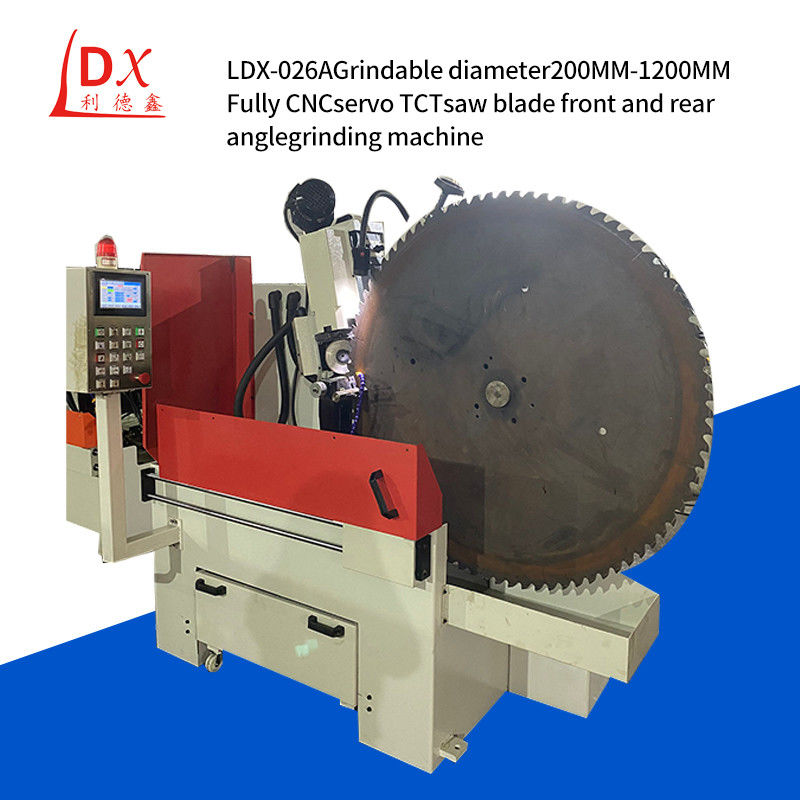

LDX-026A  Large TCT Saw Blade Full CNC Grinding Machine 0





LDX-026A  Large TCT Saw Blade Full CNC Grinding Machine 1







LDX-026A  Large TCT Saw Blade Full CNC Grinding Machine 2







LDX-026A  Large TCT Saw Blade Full CNC Grinding Machine 3
