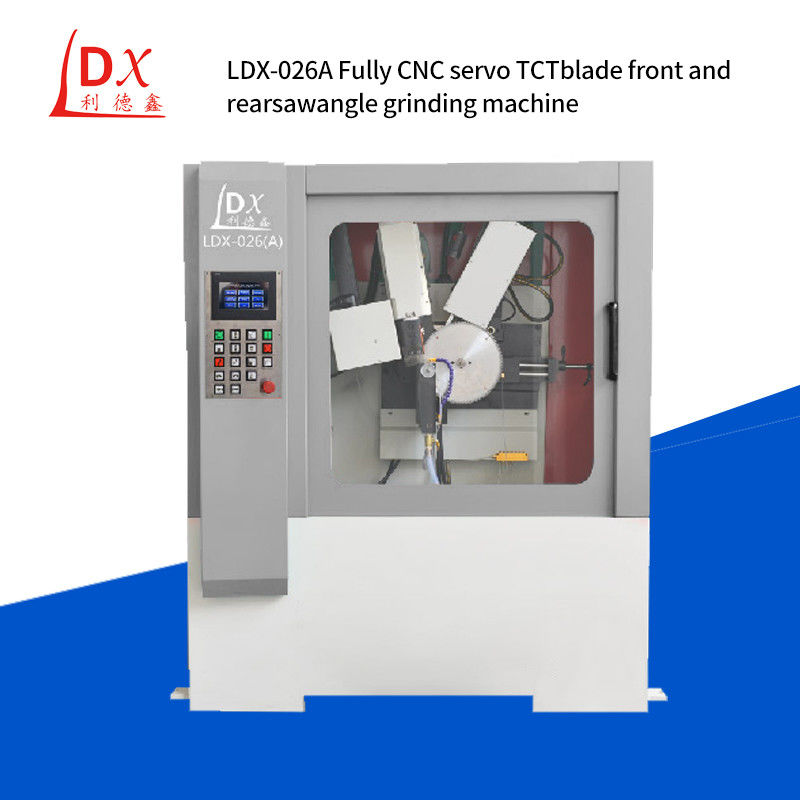

• Full CNC Carbide Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A
Full CNC Carbide Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A

Full CNC Carbide Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Range Of External Diameter Of Processing: ¢100-¢800mm Feed Configuration: Servo Control
Use: Repair And Grinding Gold Saw Blades, Production Of New TCT Circular Saw Blades
High Light:

cnc 4 inch saw blade for grinder

,

angle cnc grinding machine

,

angle 4 inch saw blade for grinder

Product Description

LDX-026A Full CNC carbide circular saw blade front and rear Angle grinding machine





The value of grinding with a gear grinder:

1,Improve cutting quality: Through precise grinding, you can ensure that the cutting surface of the saw blade is smooth and straight, reducing errors and waste.

2,Increase service life: Through the dressing of the gear grinding machine, the saw blade can be sharpened and its service life can be increased.

3,Improve work efficiency: The gear grinding machine can quickly and accurately trim the saw blade, thereby shortening the working time of workers and improving work efficiency.

4,Woodworking alloy saw blade grinding machine has a wide range of applications in wood processing, construction industry and other fields

5,Using woodworking alloy saw blade grinding machine is very simple. First, put the saw blade to be trimmed into the gear grinding machine; Then, set the grinding parameters according to the need; Finally, start the machine, adjust the Angle of the grinding wheel and the saw blade, and you can start grinding.







Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.







Full CNC Carbide Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A 0





Full CNC Carbide Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A 1







Full CNC Carbide Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A 2







Full CNC Carbide Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A 3







Full CNC Carbide Circular Saw Blade Front And Rear Angle Grinding Machine LDX-026A 4
