Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-026A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1300X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Coolant Cylinder Volume: 80L Total Power: 2.2KW
Grinding Head Rotation Angle: Grinding Head Rotation Angle: 90° And 180° Rinding Wheel Dimensions (outer Diameter * Bore): (¢125mm*¢32mmX1mm)
High Light:

ldx-026a cnc grinding machine

,

ldx-026a 4 inch saw blade for grinder

,

angle cnc grinding machine

Product Description

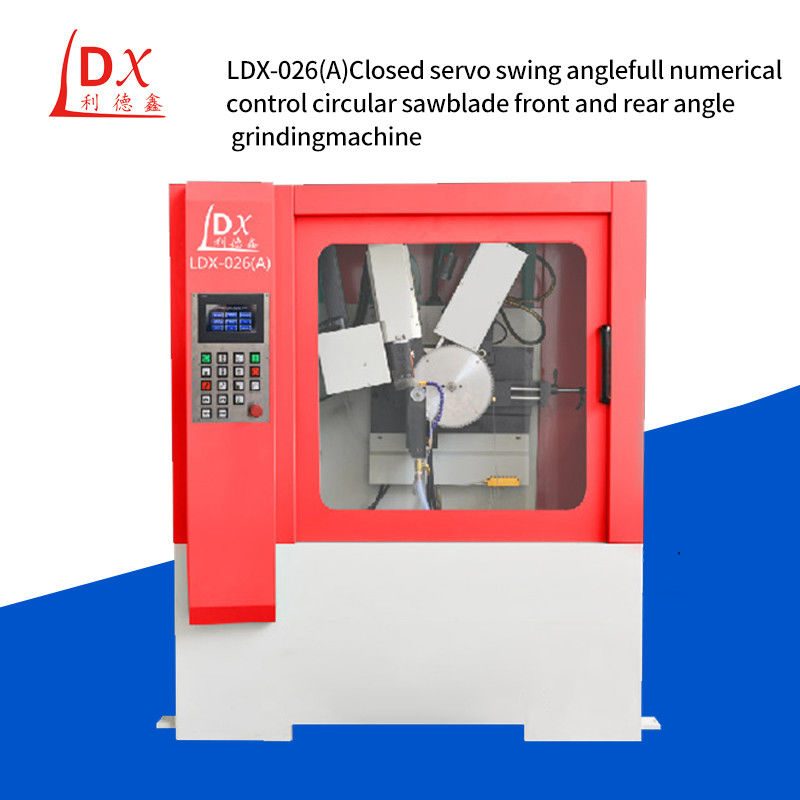

LDX-026A Full enclosed servo swing Angle full CNC TCT saw blade front and rear Angle sharpening machine



Definition and application scenario of CNC circular saw blade grinding machine:

1,The CNC circular saw tooth grinding machine is a CNC machine tool used to precisely grind and trim the cutting edge of the circular saw blade.

2,It is widely used in wood processing, furniture manufacturing, carpentry DIY and other fields, used to improve the cutting accuracy and efficiency of circular saw blades, while extending the service life of circular saw blades.

3,The working principle of CNC circular saw gear grinding machine is mainly to control the rotation and feed of the grinding wheel through the CNC system, and combine the rotation movement of the grinding wheel with the rotation movement of the circular saw blade to realize the interaction between the grinding wheel and the circular saw blade to achieve the purpose of grinding and dressing.

4,Its basic structure includes grinding wheel device, workbench, control system and feed system.







Main Technical Parameters :
Range of external diameter of processing:¢100-¢800mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-8mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°
Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:900KG
Appearance(Long*Width*Height):1500X1300X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and
