CNC Servo Feed CNC Saw Blade Grinding Machine LDX-020B
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-020（B） |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical size (length X width X height): 1500X1300X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Processing Saw Blade Diameter Range: | ¢100-800mm | Saw Blade Thickness (steel Plate): | 1-8mm |
|---|---|---|---|
| Tooth Surface Angle: | 5 Degrees To+30 Degrees | Tip Back Angle: | 6-45 Degrees |
| Highlight: | cnc saw blade grinding machine,saw blade grinding machine ldx-020b,cnc saw grinding machine |
||
Product Description

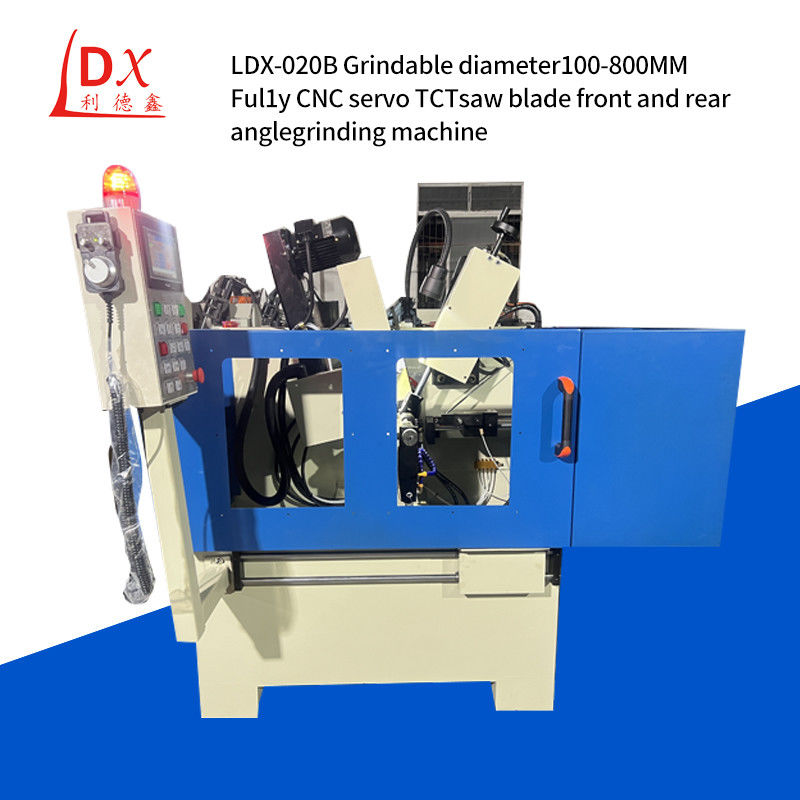

LDX-020B CNC Servo Feed CNC Saw Blade Grinding Machine
Chamfering gear grinding machine method:
1,Change the tooth shape to a triangular tooth state
2,Zero the difference between high and low teeth
3,Adjust the claw distance to two teeth at a time
4,Adjust the lower range of grinding head according to the outer diameter of grinding wheel
5,During tooth feeding, the grinding wheel should not touch the cutting Angle of the front teeth, otherwise the previous effect will be wasted
| Technical Parameters: |
| Processing saw blade diameter range: ¢100-800mm |
| Saw blade aperture: ¢10-220mm |
| Saw blade thickness (steel plate): 1-7mm |
| Pitch: 7-100mm |
| Tooth surface angle: 5 degrees ~ +30 degrees |
| Tip back angle: 6-45 degrees |
| Left and right inclination of the tooth: tooth top / tooth surface 45 degrees |
| Sharpening stroke range: up to 25mm (adjustable) teeth / minute |
| Sharpening speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth / minute |
| Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm) |
| Negative chamfer grinding: -27 degrees |
| Grinding head can rotate angle: 90 degrees and 180 degrees |
| Grinding wheel line speed: 26m / s |
| Coolant pump flow: 501/min |
| Cooling tank volume: 85L |
| Total power: 1.85 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 710KG |
| Mechanical size (length X width X height): 1500X1300X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged. |
