• Automatic TCT Saw Blade Front And Rear Angle Grinding Machine LDX-020A
Automatic TCT Saw Blade Front And Rear Angle Grinding Machine LDX-020A

Automatic TCT Saw Blade Front And Rear Angle Grinding Machine LDX-020A

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Mechanical dimensions (length x width x height): 1500X1100X1700mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Voltage: Three-phase 380v Volume Of Coolant Cylinder: 85L
Total Power: 1.85 KW
High Light:

ldx-020a cnc grinding machine

,

ldx-020a 4 inch saw blade for grinder

,

automatic cnc grinding machine

Product Description

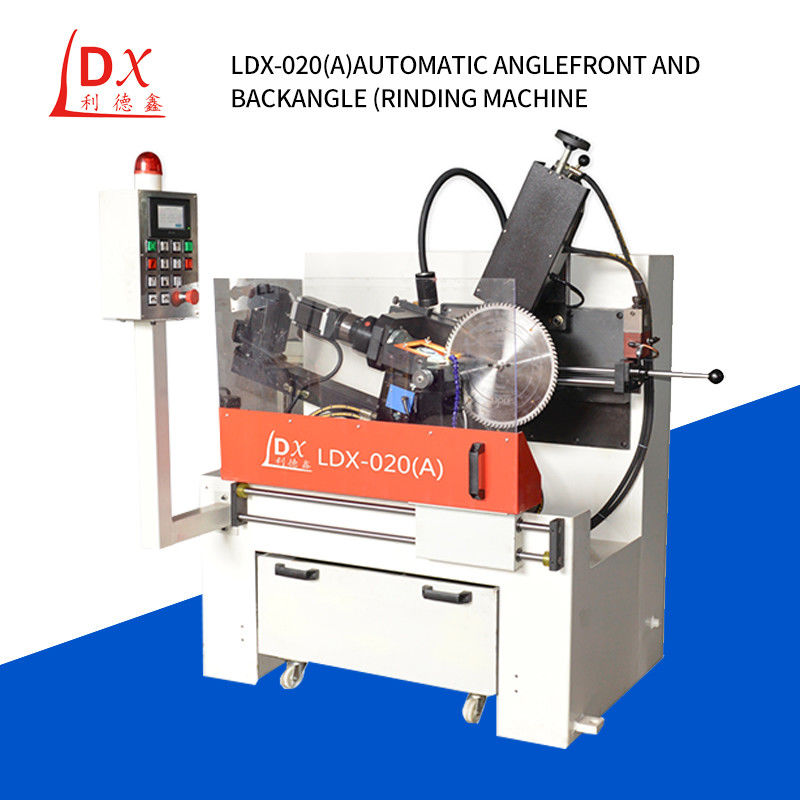

LDX-020A Automatic TCT saw blade front and rear Angle grinding machine









Technical parameter:
Processing saw blade diameter range: ¢100- ¢800mm
Saw blade aperture: ¢ 10-220mm
Saw blade thickness (steel plate): 1-12mm
Tooth pitch: 7-100mm
Tooth surface angle: 5 degrees to+20 degrees
Tooth top back angle: 1-20 degrees
Left and right inclination of teeth: tooth tip/tooth surface 20 degrees
Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
Grinding speed: 0.5-6mm/s
Working speed: maximum 20 teeth/minute
Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢ 32mmX1mm)
Negative chamfer grinding: -15 degrees
Grinding wheel linear speed: 26m/s
Flow rate of coolant water pump: 501/min
Volume of coolant cylinder: 85L
Total power: 1.85 kW
Voltage: three-phase 380v
Mechanical weight: 700KG
Mechanical dimensions (length x width x height): 1500X1100X1700mm
Technical features:
1. This equipment can grind aluminum TCT cutting alloy saw blades and woodworking saw blades. It is easy to operate and can fully extend the service life of TCT saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers.
