Diameter 200-1200MM Servo Feed CNC Circular Saw Blade Gear Grinding Machine

Diameter 200-1200MM Servo Feed CNC Circular Saw Blade Gear Grinding Machine

Product Details:

Place of Origin: Foshan, Guangdong, China
Brand Name: Lidexin
Certification: CU,ISO
Model Number: LDX-020(B)

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Western Union
Packaging Details: Appearance(Long*Width*Height):1500X1200X1800mm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/mon
Get Best Price Contact Now

Detail Information

Tooth Face Angle: 5°~+30° Inner Bore Of Saw Blade: ¢10-220mm
Thickness Of Saw Web (steel Plate): 1-12mm Grinding Wheel Dimensions (outer Diameter * Bore): (¢125mm*¢32mm*1mm)
Range Of External Diameter Of Processing: ¢200-¢1200mm Negative Chamfer Grinding: -27°
High Light:

Circular Saw Blade Gear Grinding Machine

,

Servo Feed CNC Gear Grinding Machine

Product Description

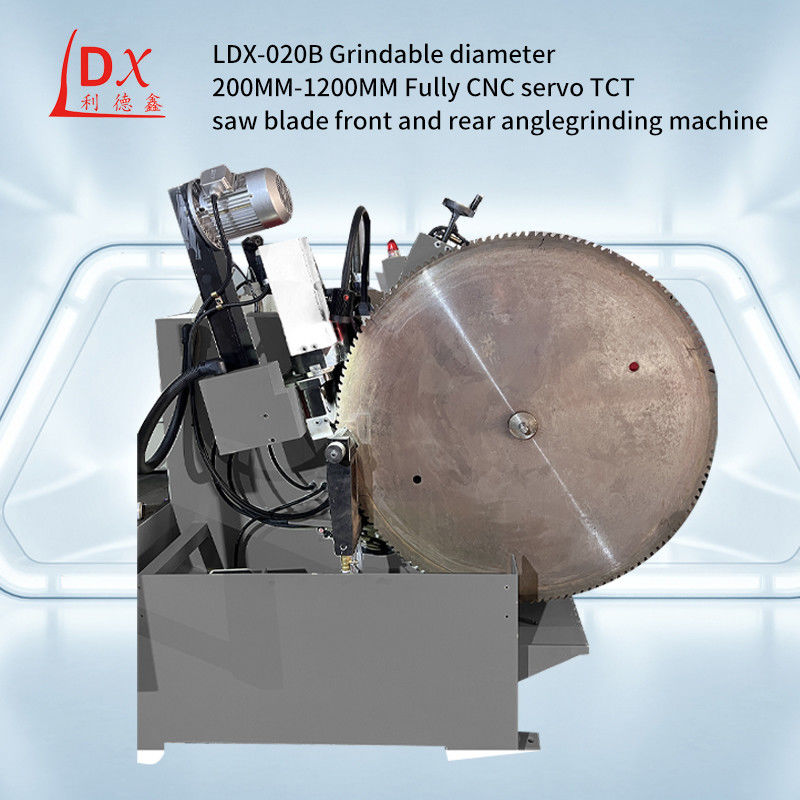

LDX-020B Diameter 200-1200MM servo feed CNC circular saw blade gear grinding machine



TCT saw blade grinding method:

1,Saw blade sharpening is just a rough grinding and processing of the front corners of the saw teeth. Now there are many such grinding factories and handicraft workshops, specializing in the grinding of alloy saw blades.

2,The side accuracy of the saw blade has a large deviation, so the saw path will become larger, the surface will be rough, and the burrs will be large. The stress adjustment must be done more than 2 times.

3,If it can be adjusted within the standard range (this standard refers to the saw blade production standards according to Japan Kanebo Co., Ltd., that is, the side accuracy of the saw blade), then enter the next process; otherwise, if grinding is required, try your best again. Calibrated and precision ground.

4,Be careful when using it! Grinding of the saw blade is carried out in two steps. First, a 200-grit diamond grinding wheel imported from Japan is used for rough grinding, and then a 600-grit grinding wheel is used for more precise grinding.





Main Technical Parameters :
Range of external diameter of processing:¢200-¢1200mm
Inner bore of saw blade:¢10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mm*1mm)
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:800KG
Appearance(Long*Width*Height):1500X1200X1800mm

Technical features:
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.
